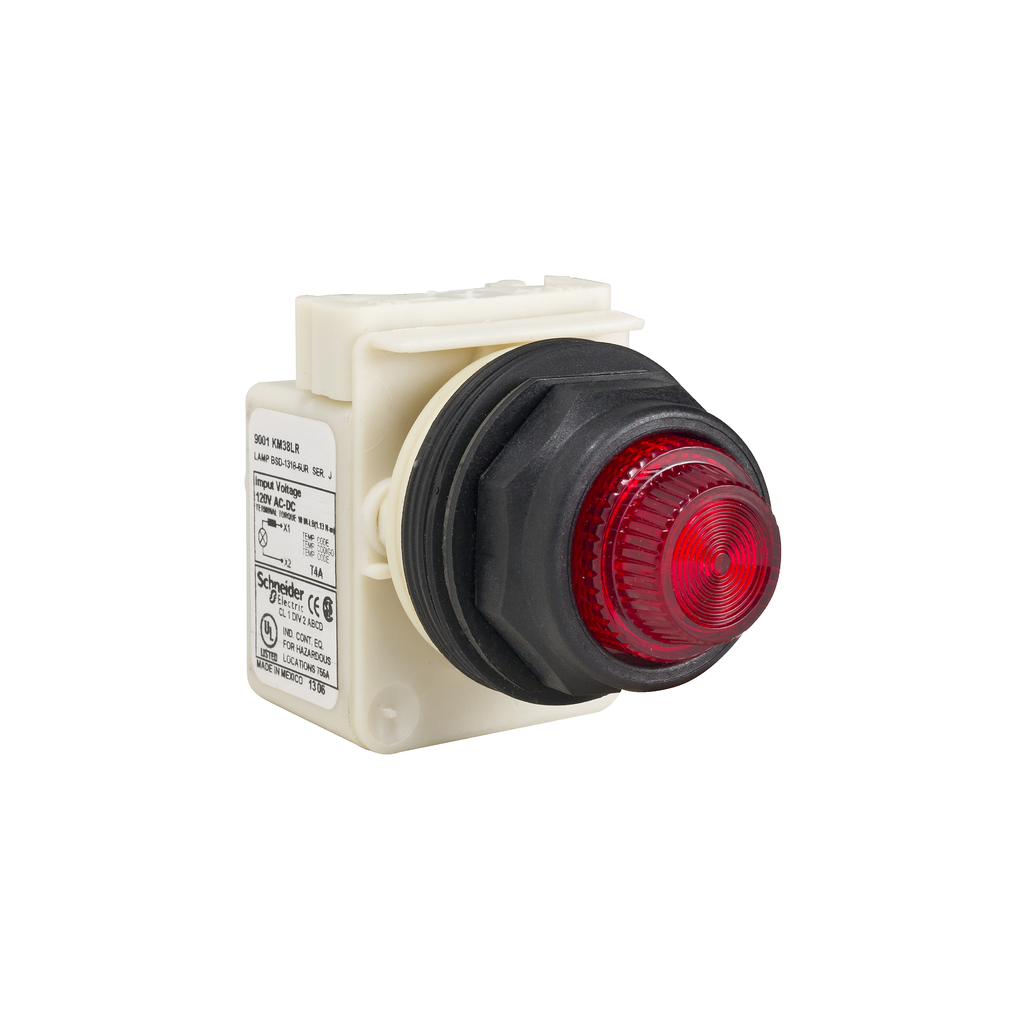

Pilot light, Harmony 9001SK, plastic, polycarbonate, fresnel lens, red, 30mm, LED red, 120V
This Harmony 9001SK, red pilot light with integral LED and plastic fresnel is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Light Block Supply | direct 120 V |
| Product Or Component Type | pilot light |
| Lens Type | fresnel plastic |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 120 V |
| [Us] Rated Supply Voltage | 120 V AC |
| Lens Material | polycarbonate |
| Light Source | LED |
| Mounting Diameter | 30 mm |
| Operating Mode | normal |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | red |
| Size | 30 mm |
| Cad Overall Height | 70 mm |
| Device Presentation | complete product |
| Lens Type | fresnel |
| Light Source | Red LED |
| Bezel Material | plastic |
| Light Source Colour | red |
| Operating Position | any position |
| Cad Overall Width | 54 mm |
| Cad Overall Depth | 42 mm |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ip Degree Of Protection | IP66 |
| Protective Treatment | TC |
