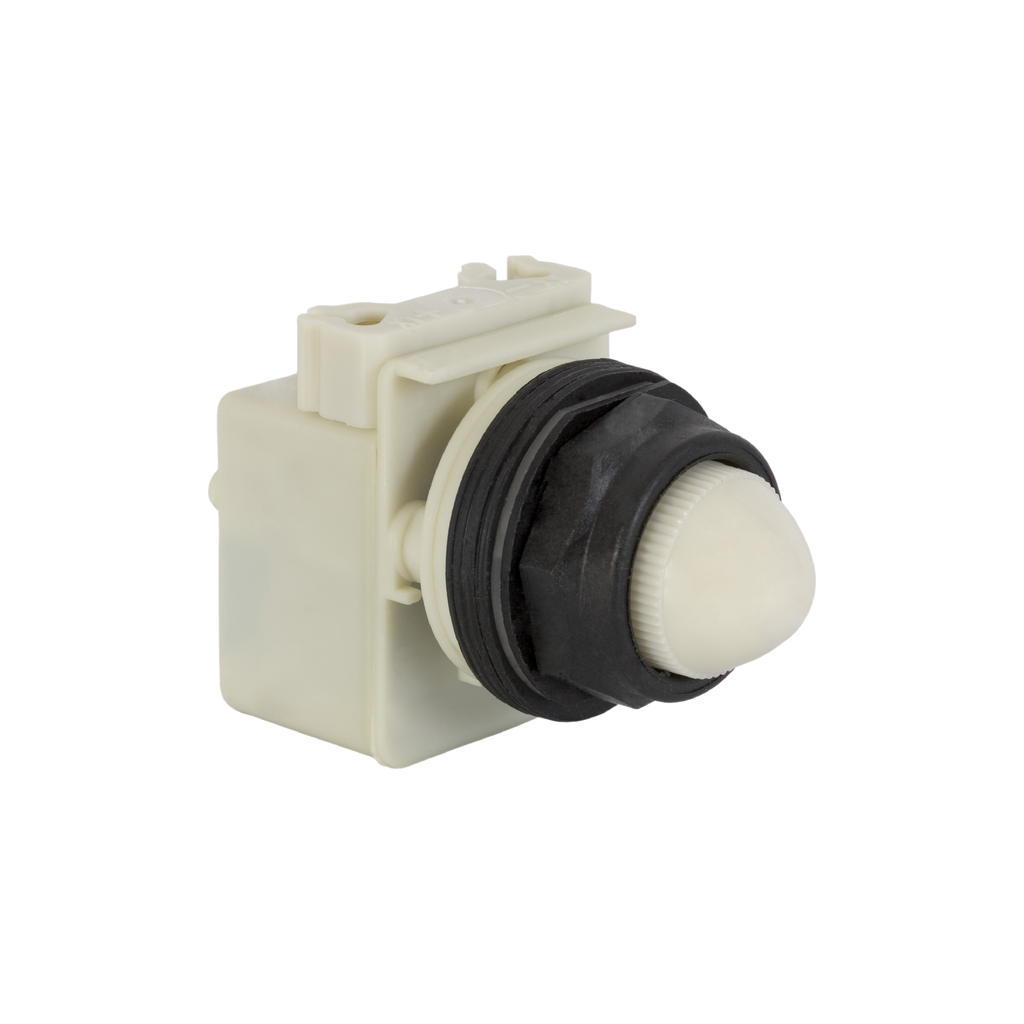

Pilot light, Harmony 9001SK, plastic, polycarbonate, domed, white, 30mm, 110-120V
This Harmony 9001SK, white pilot light with transformer and plastic dome is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Light Block Supply |
|
| Product Or Component Type | pilot light |
| Lens Type | domed plastic |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 110...120 V |
| [Us] Rated Supply Voltage | 110...120 V AC |
| Light Source | incandescent |
| Bezel Material | plastic |
| Lens Material | polycarbonate |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Position | any position |
| Operating Mode | normal |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | white |
| Cad Overall Width | 54 mm |
| Cad Overall Depth | 42 mm |
| Size | 30 mm |
| Cad Overall Height | 70 mm |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Device Presentation | complete product |
| Lens Type | domed |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 |
