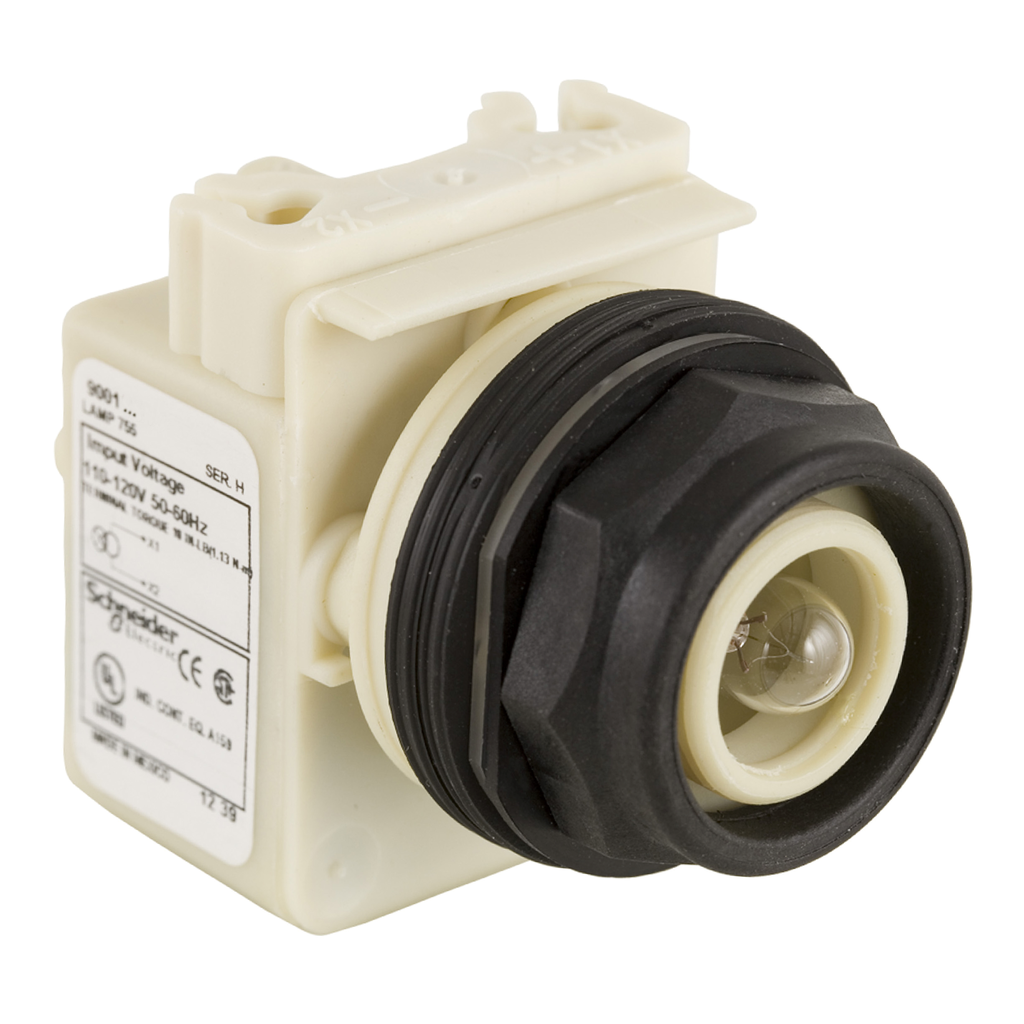

Pilot light head, Harmony 9001SK, plastic, without cap, 30mm, 110...120V
This pilot light is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel and is delivered without color cap. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Light Block Supply |
|
| Product Or Component Type | head for pilot light |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 110...120 V |
| Light Source | incandescent bulb |
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Mode | normal |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Bezel Material | plastic |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710019EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710019EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ip Degree Of Protection | IP66 |
| Protective Treatment | TC |
Documents
- Spec Sheet
- Harmony 9001K, SK, KX 30mm Push Buttons Catalog - 9001CT1103 (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- 9001 Heavy Duty Corrosion Resistant Pilot Lights Instruction Sheet - 65013-002-51_04 (pdf)
