9001SK2L35LYA

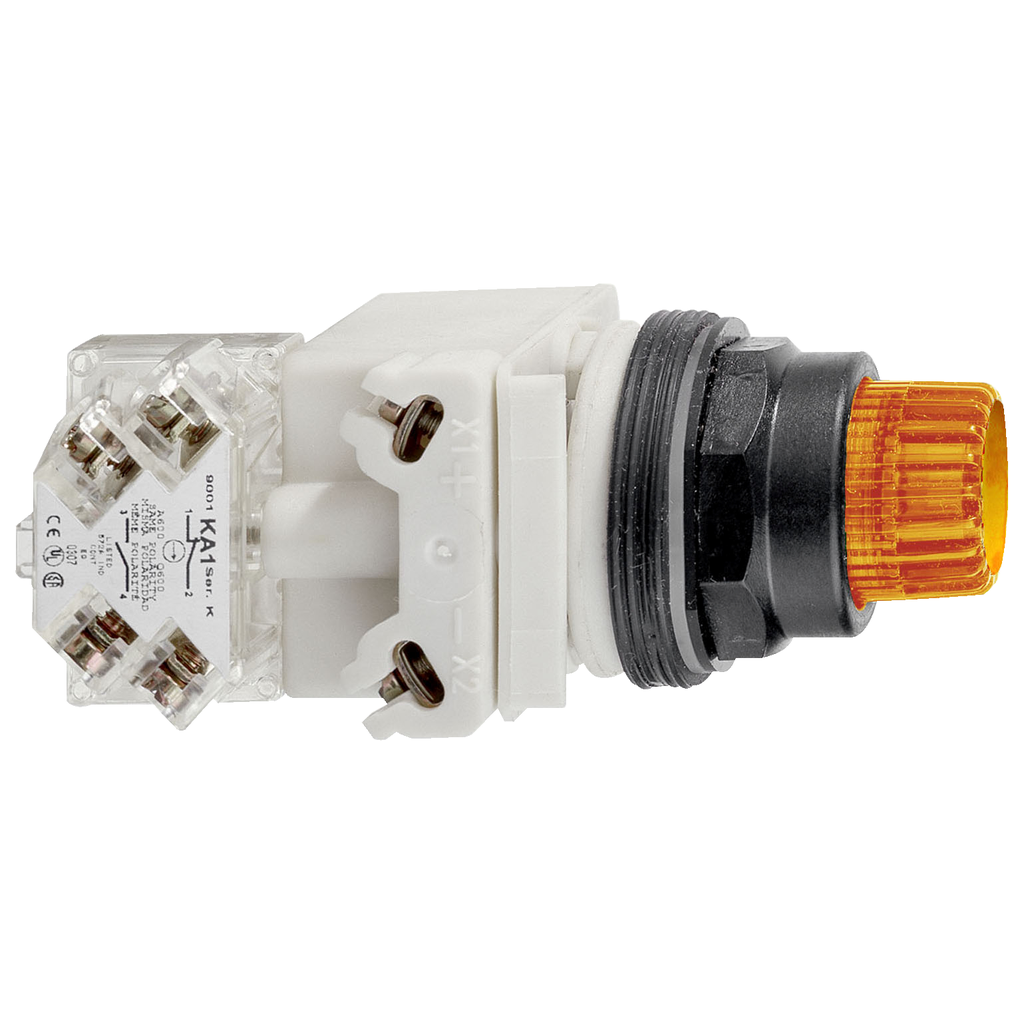

Illuminated push-button head, Harmony 9001SK, plastic, projecting, amber, 30mm, spring return, LED yellow, 24-28V
Specifications
| Range Of Product | Harmony 9001SK |
|---|---|
| Operator Profile | amber projecting, unmarked |
| Light Block Supply | direct 24 V AC/DC |
| Type Of Operator | spring return |
| Product Or Component Type | head for illuminated push-button |
| Device Short Name | 9001SK |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...28 V |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Contacts Type And Composition | without contact block |
| Light Source | Yellow LED |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Bezel Material | plastic |
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Light Source Colour | yellow |
| Mechanical Durability | 5000000 cycles |
| Mounting Diameter | 30 mm |
| Operator Profile | projecting |
| Type Of Operator | spring return |
| Operating Position | any position |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Shape Of Signaling Unit Head | octagonal |
| Cap/Operator Or Lens Colour | amber |
| Tightening Torque | 0.8-0.8 N.m EN/IEC 60947-1 |
| Shape Of Screw Head | cross slotted |
| Net Weight | 0.181 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Bulb Base | BA 9s |
| Device Presentation | basic element |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121005EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
