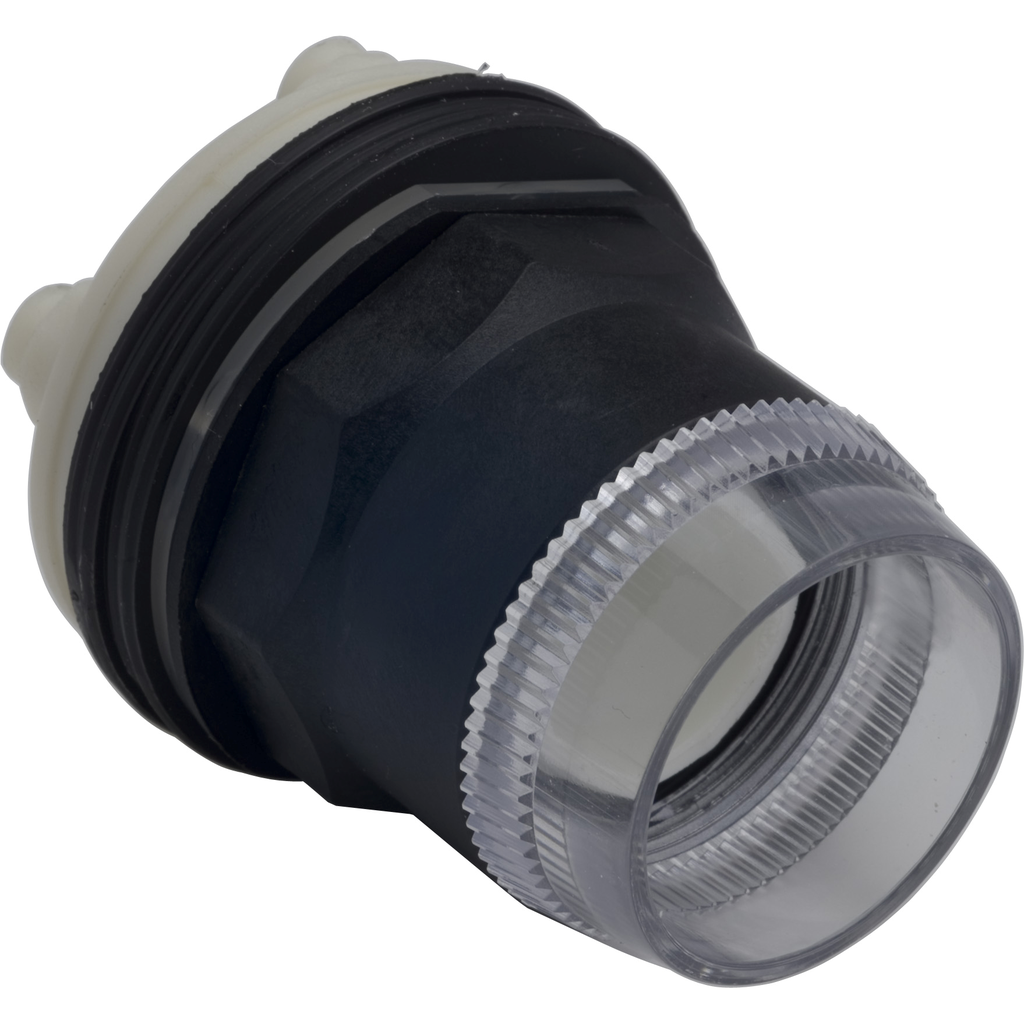

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type SK operators have a plastic operator that mounts in a 1.18 inch round hole. This full guard illuminated momentary push button has a plastic ring nut with a clear plastic end. This push button operator is without a light module to provide the illumination. The proper light module must be ordered separately. A colored lens cap must be added to this operator. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 4X, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "This product is certified by CE, CSA LR25490 class 3211 03 and UL listed file E42259 CCN NKCR." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony 9001SK |
---|---|
Product Or Component Type | head for illuminated push-button |
Device Short Name | 9001SK |
Warranty | 18 months |
Product Certifications |
|
Contacts Type And Composition | without contact block |
Light Source | without |
Operator Additional Information | plastic guard |
Bezel Material | plastic |
Nema Degree Of Protection | NEMA 1/2/3/3R/4/4X/6/12/13 |
Light Source | bulb not included |
Mounting Diameter | 30 mm |
Light Block Supply | without supply |
Operator Profile | flush |
Type Of Operator | spring return |
Shape Of Signaling Unit Head | octagonal |
Cap/Operator Or Lens Colour | without cap |
Size | 30 mm |
Ip Degree Of Protection | IP64 |
Bulb Base | BA 9s |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121005EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
