9001KT1G31

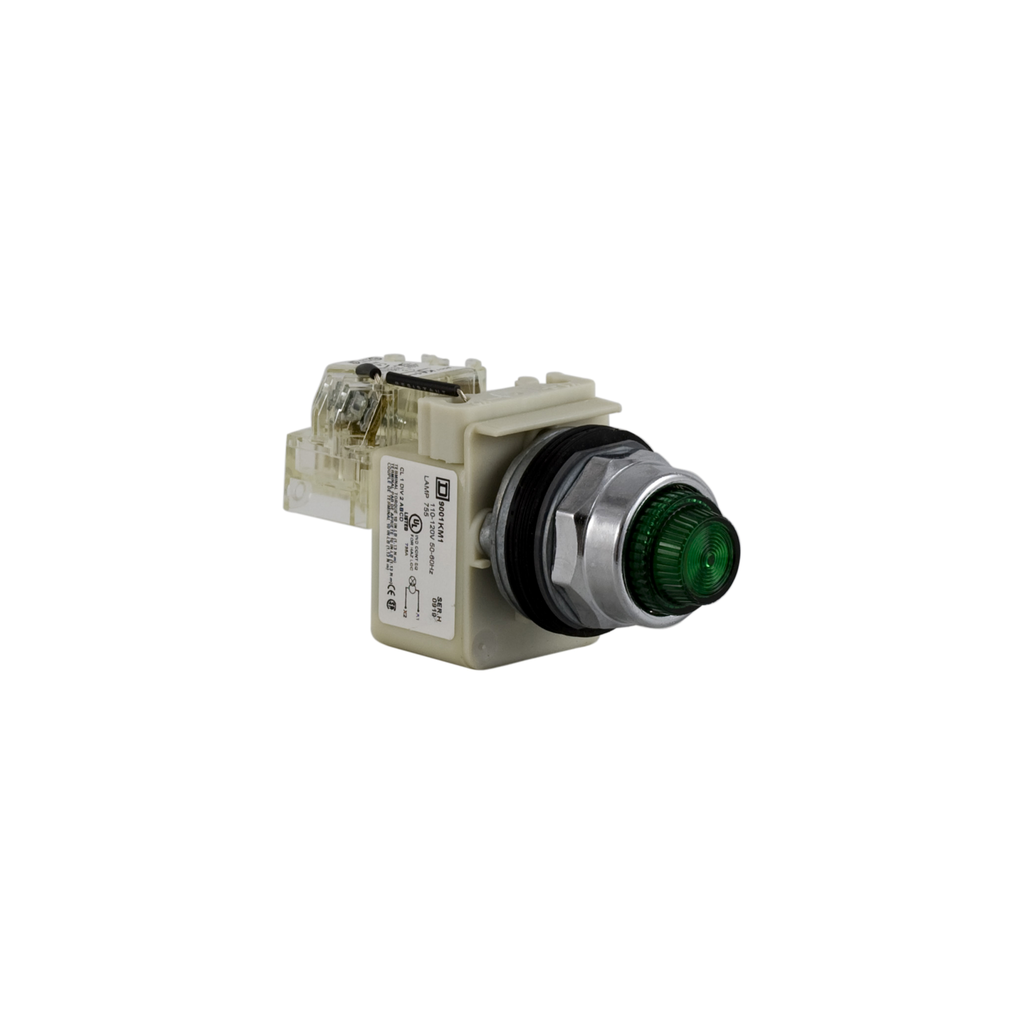

Push-to-test pilot light, Harmony 9001K, metal, polycarbonate, fresnel lens, green, 30mm, 110...120V
This Harmony 9001KT1G31 is a pilot light 120VAC. It is part of the range Harmony 9001 K diameter 30mm metal push buttons, switches, pilot lights.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | push-to-test pilot light |
| Device Short Name | K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 110...120 V |
| Lens Material | polycarbonate |
| Light Source | incandescent bulb |
| Light Block Supply |
|
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Mode | push-to-test |
| Cap/Operator Or Lens Colour | green |
| Size | 30 mm |
| Lens Type | fresnel |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| Lens Type | fresnel plastic |
| Shape Of Screw Head | round |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
