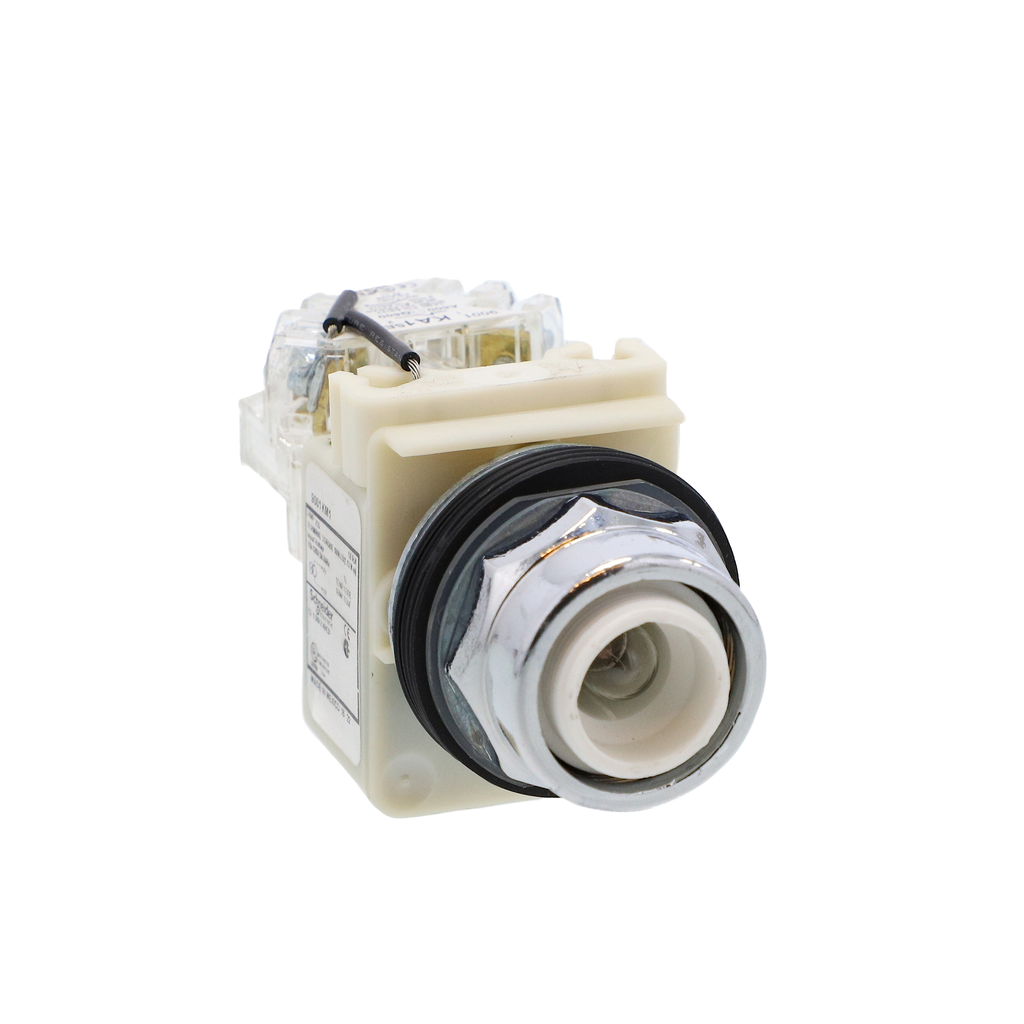

Push-to-test pilot light head, Harmony 9001K, metal, without cap, 30mm, 110...120V
This pilot light is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel and is delivered with push to test operator. It is supplied via internal transformer with 110V to 120V AC and it is connected with simple screw-clamp connections. It is easily installed into a standard 30mm diameter panel cut-outs. It weighs 270g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Product Or Component Type | head for push-to-test pilot light |
| Device Short Name | K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 110...120 V |
| Light Source | incandescent bulb |
| Light Block Supply |
|
| Mounting Diameter | 30 mm |
| Light Block Supply | via integral transformer |
| Operating Mode | push-to-test |
| Cap/Operator Or Lens Colour | without cap |
| Size | 30 mm |
| Contacts Type And Composition | 1 C/O |
| Bezel Material | metal |
| Shape Of Screw Head | round |
| Supply Frequency | 50...60 Hz |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
