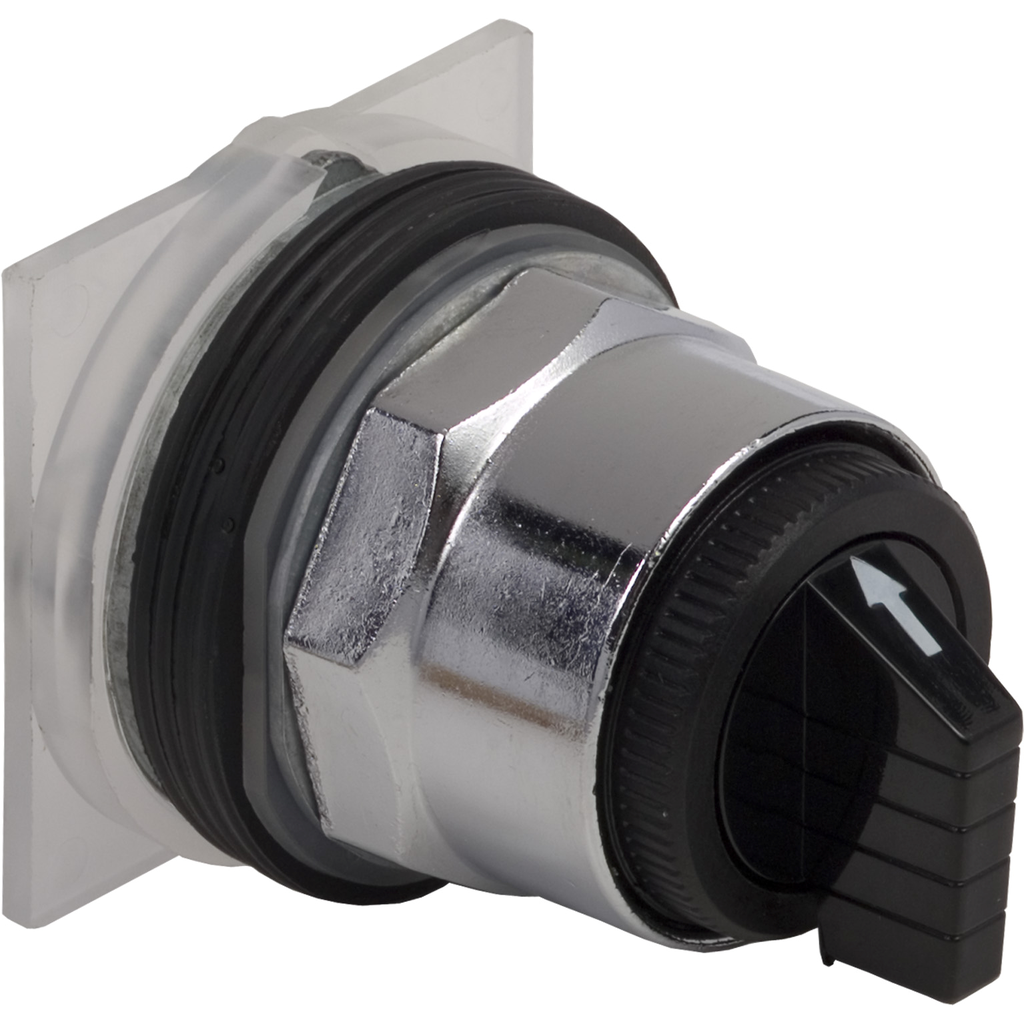

Selector switch head, Harmony 9001K, metal, standard handle, black, 30mm, 3 positions, spring return right to center
This Harmony 9001K, black selector switch with C cam has 3 positions, operates with spring return from right to center position mechanism. It has a chromium-plated metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Enclosure Type | dust and oil resistant weatherproof enclosure indoor/outdoor |
| Mounting Diameter | 30 mm |
| Product Or Component Type | head for selector switch |
| Device Short Name | K |
| Warranty | 18 months |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Operator Position Information | 3 positions |
| Operator Profile | standard handle |
| Type Of Operator | spring return |
| Cap/Operator Or Lens Colour | black |
| Type Of Operator | spring return right to centre |
| Size | 30 mm |
| Operator Profile | 1 projecting push-button |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
