9001KS63FB

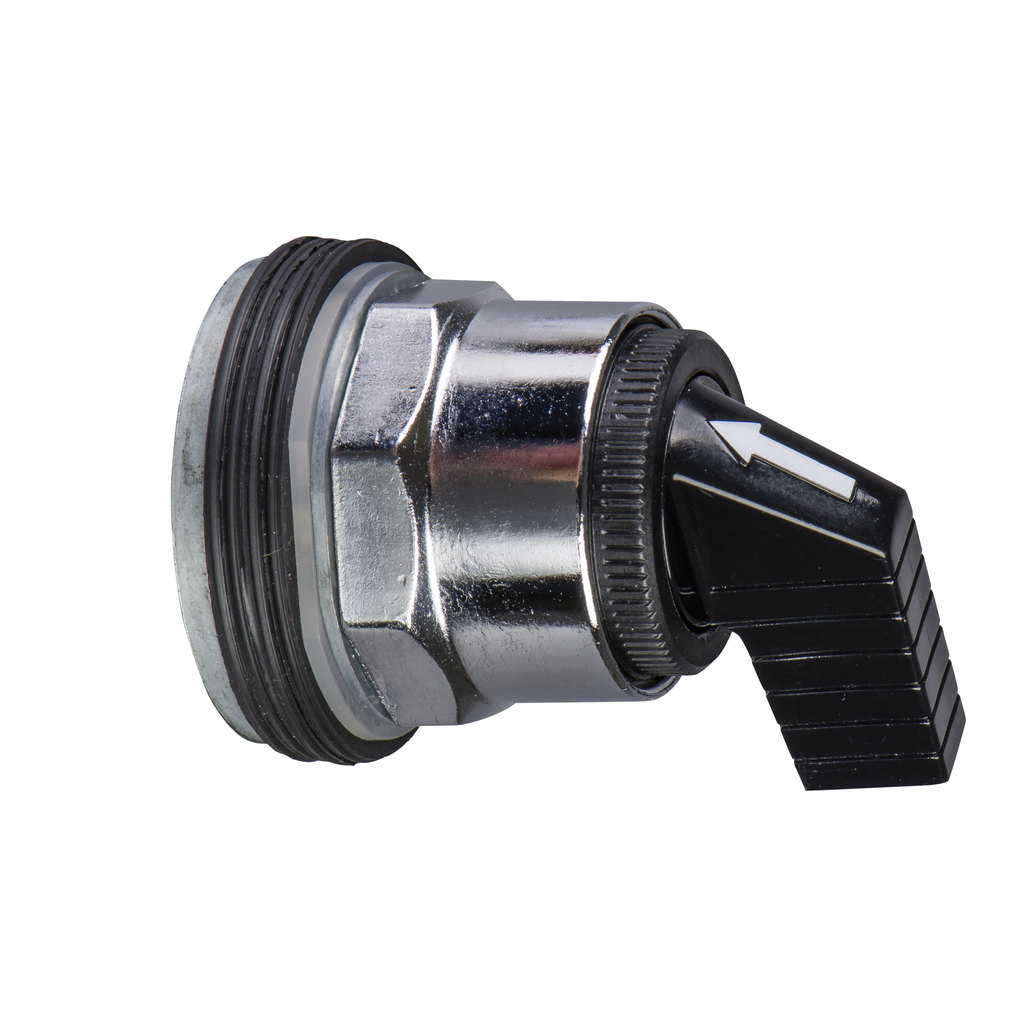

Selector switch head, Harmony 9001K, metal, long handle, black, 30mm, 3 positions, spring return left to center
This selector switch with long handle provides a versatile interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Type Of Operator | left to centre spring return |
| Product Or Component Type | head for selector switch |
| Operator Profile | black long handle |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Cam Profile | 3 |
| Mounting Diameter | 30 mm |
| Operator Profile | long handle |
| Shape Of Signaling Unit Head | octagonal |
| Cap/Operator Or Lens Colour | black |
| Net Weight | 0.172 kg |
| Size | 30 mm |
| Device Presentation | basic element |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Product Compatibility | 9001KA1 side 1 or 2 |
| Operator Position Information | 3 positions |
| Mechanical Durability | 500000 cycles |
| Type Of Operator | spring return |
| Return | left to centre |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Nema Degree Of Protection |
|
| Protective Treatment | TC |
