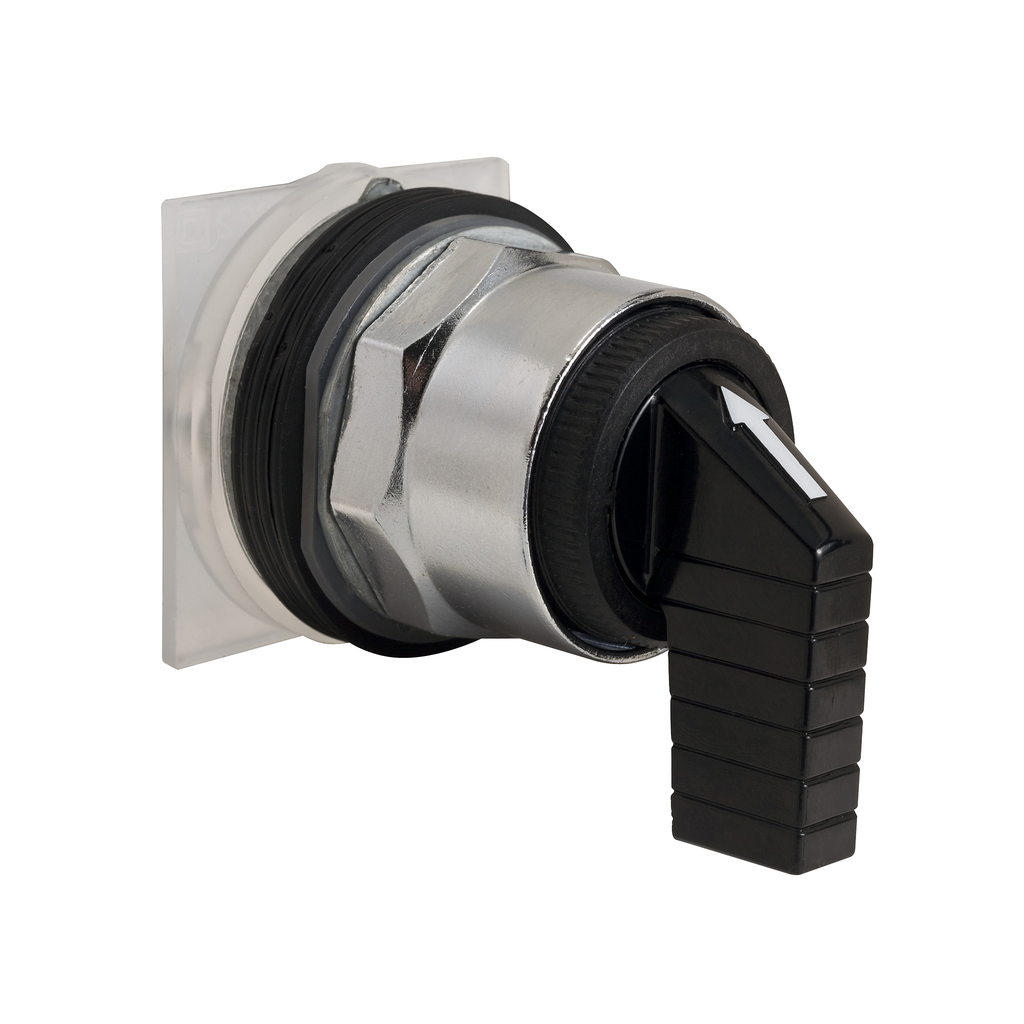

This selector switch with long handle provides a versatile interface for controlling your machines It provides an effective manner to set your machine in various operating modes It is impact resistant, dust resistant, water resistant, vibration resistant and oil resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony 9001K |
---|---|
Enclosure Type | dust and oil resistant weatherproof enclosure indoor/outdoor |
Product Or Component Type | head for selector switch |
Warranty | 18 months |
Contacts Type And Composition | without contact block |
Bezel Material | metal |
Operator Position Information | 3 positions |
Operator Profile | long handle |
Type Of Operator | spring return |
Cap/Operator Or Lens Colour | black |
Type Of Operator | spring return both sides to centre |
Size | 30 mm |
Operator Profile | 1 projecting push-button |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121006EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
