9001KS11K3H2

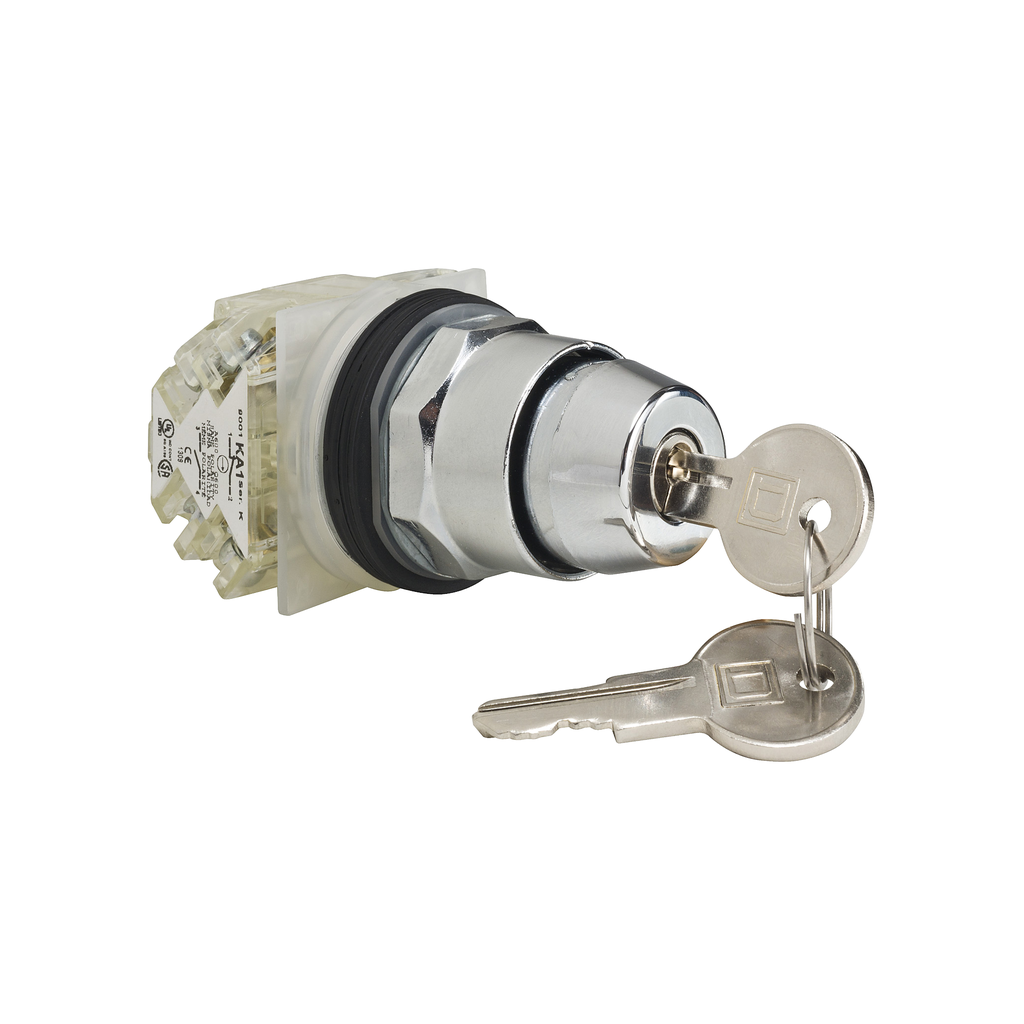

Selector switch, Harmony 9001K, metal, key switch, 30mm, key E10, 2 positions, stay put, 2 changeovers
This key operated selector switch provides a versatile interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes It weights 240.404 g High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Operator Profile | black key operated knob |
| Type Of Operator | maintained |
| Product Or Component Type | selector switch |
| Device Short Name | K |
| Warranty | 18 months |
| Key Withdrawal Position | left and right |
| Connections - Terminals | screw-clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Contacts Type And Composition | 2 C/O |
| Key Number | E10 |
| Bezel Material | metal |
| Cam Profile | 5 |
| Operator Position Information | 2 positions |
| Mounting Diameter | 30 mm |
| Operator Profile | key switch |
| Type Of Operator | stay put |
| Size | 30 mm |
| Device Presentation | complete product |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
