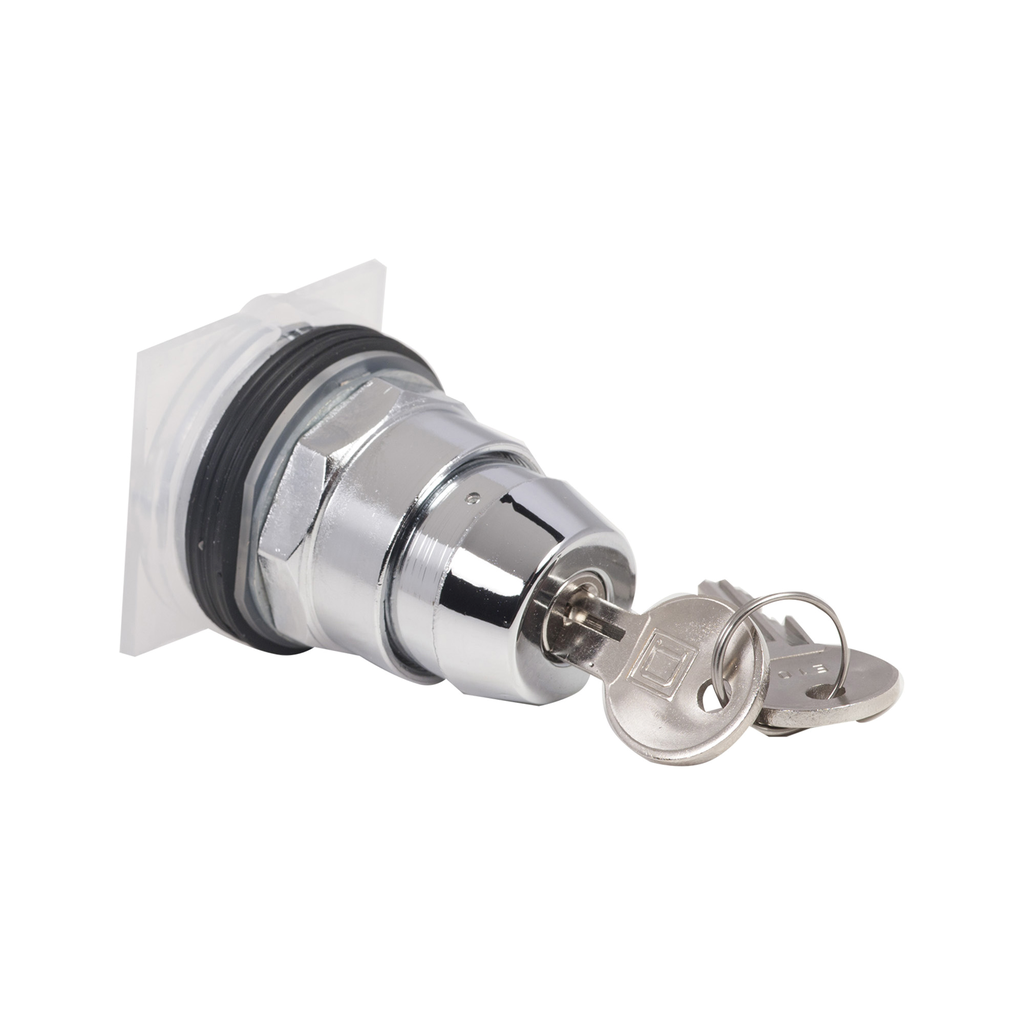

This key operated selector switch with two position provides a versatile interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and provides a secure manner for authorized staff to switch between process or machine operating modes High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony 9001K |
---|---|
Operator Profile | black key operated knob |
Type Of Operator | maintained |
Product Or Component Type | head for key selector switch |
Device Short Name | K |
Warranty | 18 months |
Key Withdrawal Position | right |
Contacts Type And Composition | without contact block |
Key Number | E10 |
Bezel Material | metal |
Cam Profile | 5 |
Operator Position Information | 2 positions |
Mounting Diameter | 30 mm |
Operator Profile | key switch |
Type Of Operator | stay put |
Size | 30 mm |
Device Presentation | basic element |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121006EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
