30mm push button range is robust and offers long term reliability in heavy duty industrial applications and extreme environments. The 9001K operator have a metal operator base and the 9001SK operators have a plastic base. This very broad line of push button operators includes push buttons, emergency stop mushroom head push buttons, selector switches, key operated switches, and operators with potentiometers. Also includes pilot lights (LED, incandescent and neon), joystick controllers, wobble stick operators, and operators with multiple functions. These operators can be purchased as complete operators or as subassemblies that can be assembled by the user to meet specific requirements. The 9001 K metal 30mm push buttons are automatic selfgrounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Contact blocks have terminal screw shipped back out to speed wiring and has a very large variety of accessories. Some operators have super bright LEDs for high visibility. These operators are IP 66, NEMA 4 rated (heavy duty, oil tight, water proof and dust tight without requiring boots). The 9001SK operators are also NEMA 4X corrosion resistant. The 9001K and 9001SK 30mm push button operators conforms to IEC, UL, CSA, EN and NOM standards. They are CE marked. 30mm Push Buttons are used in the automotive, machine tool, crane and hoist, food and beverage, industrial applications, material handling, petrochemical, wastewater treatment, metallurgy and many more industries.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony 9001K |
---|---|
Type Of Operator | stay put |

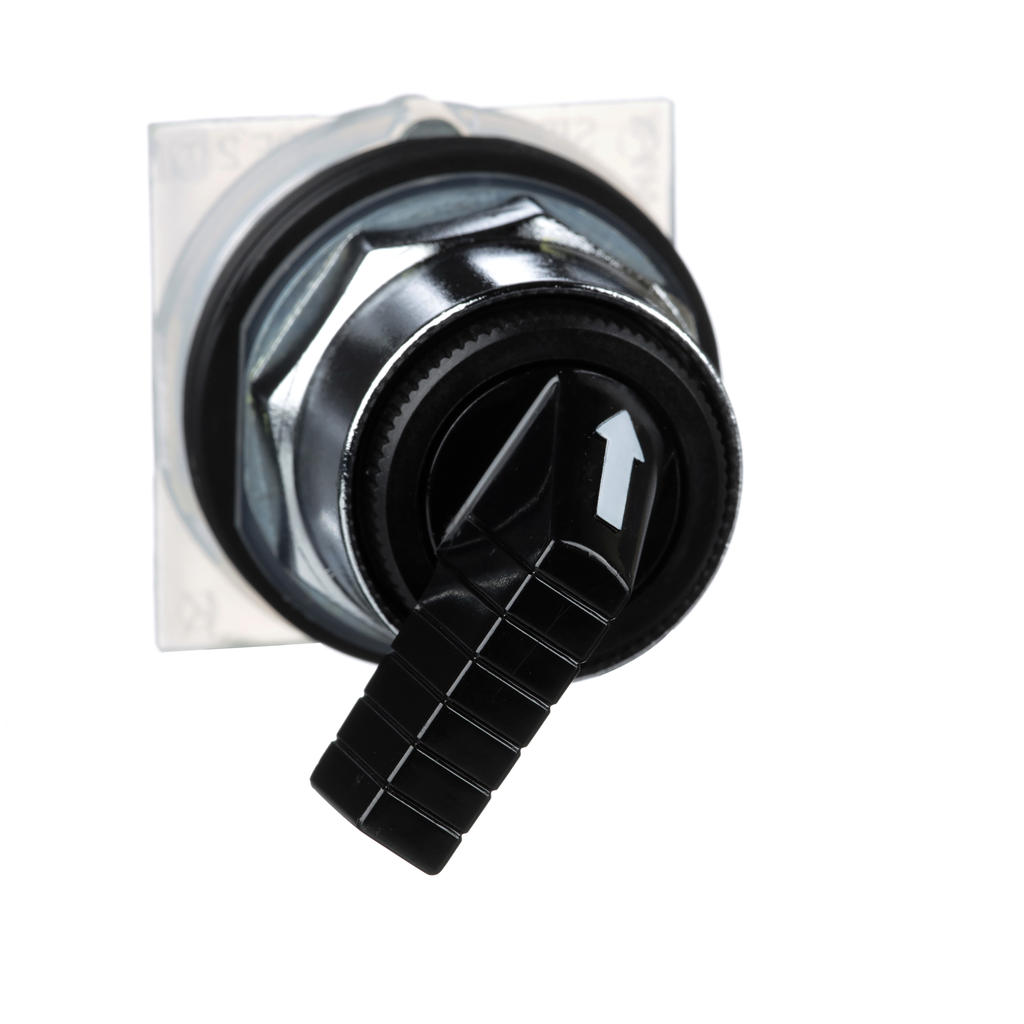

Product Or Component Type | head for selector switch |
Operator Profile | black long handle |
Device Short Name | 9001K |
Warranty | 18 months |
Cam Profile | 5 |
Mounting Diameter | 30 mm |
Operator Profile | long handle |
Shape Of Signaling Unit Head | octagonal |
Cap/Operator Or Lens Colour | black |
Net Weight | 0.172 kg |
Size | 30 mm |
Device Presentation | basic element |
Contacts Type And Composition | without contact block |
Bezel Material | metal |
Product Compatibility | 9001KA2 side 1 or 2 |
Operator Position Information | 2 positions |
Mechanical Durability | 500000 cycles |
Type Of Operator | stay put |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121006EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance | 50 gn IEC 60068-2-27 |
Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection | IP66 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 61140 |
Nema Degree Of Protection |
|
Protective Treatment | TC |
