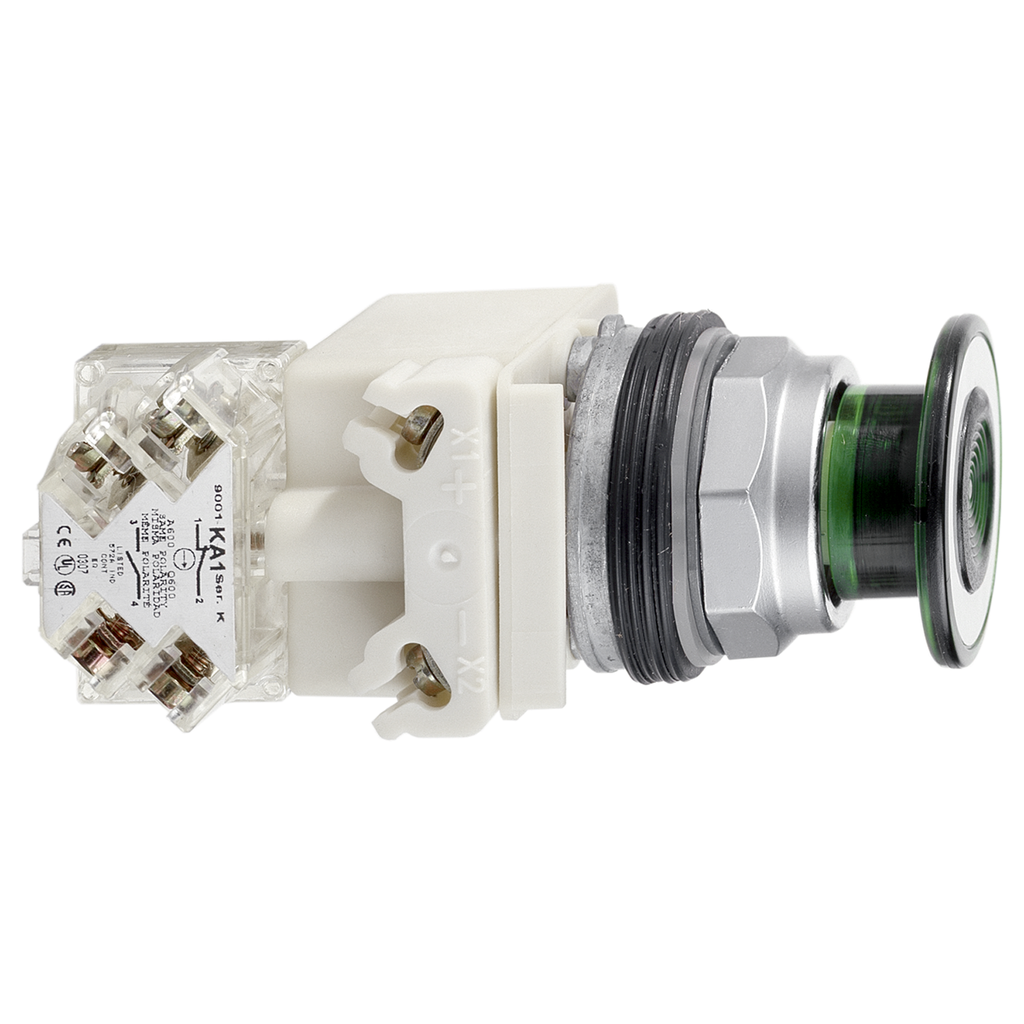

9001KR9P38LGG
Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, green, 30mm, 2 positions, push-pull, LED green, 120V
Specifications
| Range Of Product | Harmony 9001K |
|---|---|
| Operator Profile | green mushroom Ø 41 mm, unmarked |
| Light Block Supply | direct |
| Type Of Operator | stay put |
| Product Or Component Type | head for illuminated push-button |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 120 V |
| [Us] Rated Supply Voltage | 120 V AC/DC |
| Contacts Type And Composition | without contact block |
| Light Source | incandescent |
| Operator Additional Information | screw-on plastic |
| Bezel Material | metal |
| Light Source Colour | green |
| Operator Position Information | 2 positions |
| Light Source | LED |
| Mechanical Durability | 5000000 cycles |
| Compatibility Code | 9001K |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Type Of Operator | push-pull |
| Operating Position | any position |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Net Weight | 0.186 kg |
| Size | 30 mm |
| Bulb Base | BA 9s |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
