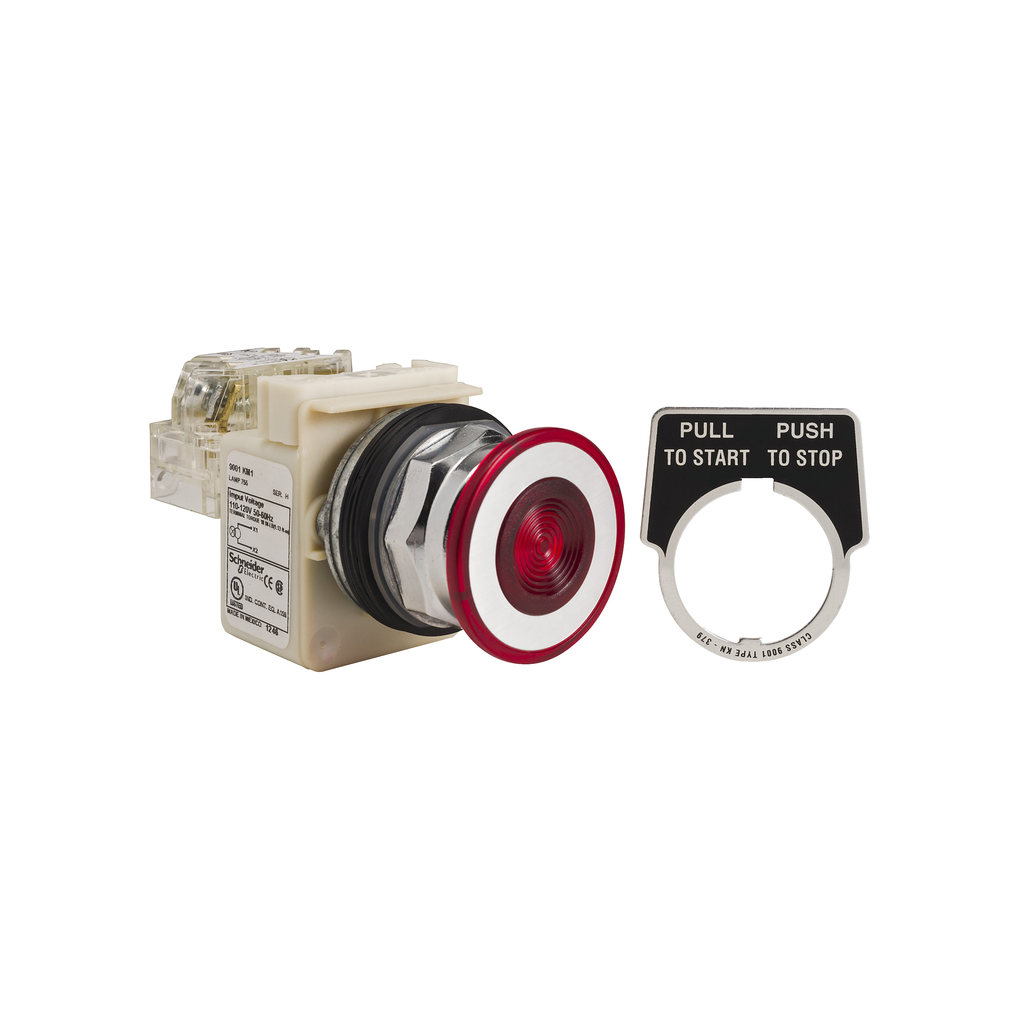

Illuminated push-button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, 24-28V
This Harmony 9001K, modular illuminated red push button with screw-in head has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED, it has 40mm mushroom head. This mushroom shaped push button with integral LED is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits. It is clearly distinguishable visually at a distance thanks to its illuminated head and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | screw-on plastic |
|---|---|
| Range Of Product | Harmony 9001K |
| Operator Profile | red flush |
| Product Or Component Type | head for illuminated push-button |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...28 V |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Operator Position Information | 2 positions |
| Mounting Diameter | 30 mm |
| Type Of Operator | spring return |
| Light Block Supply | full voltage |
| Operator Profile | mushroom Ø 41 mm |
| Type Of Operator | push-pull |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | red |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
