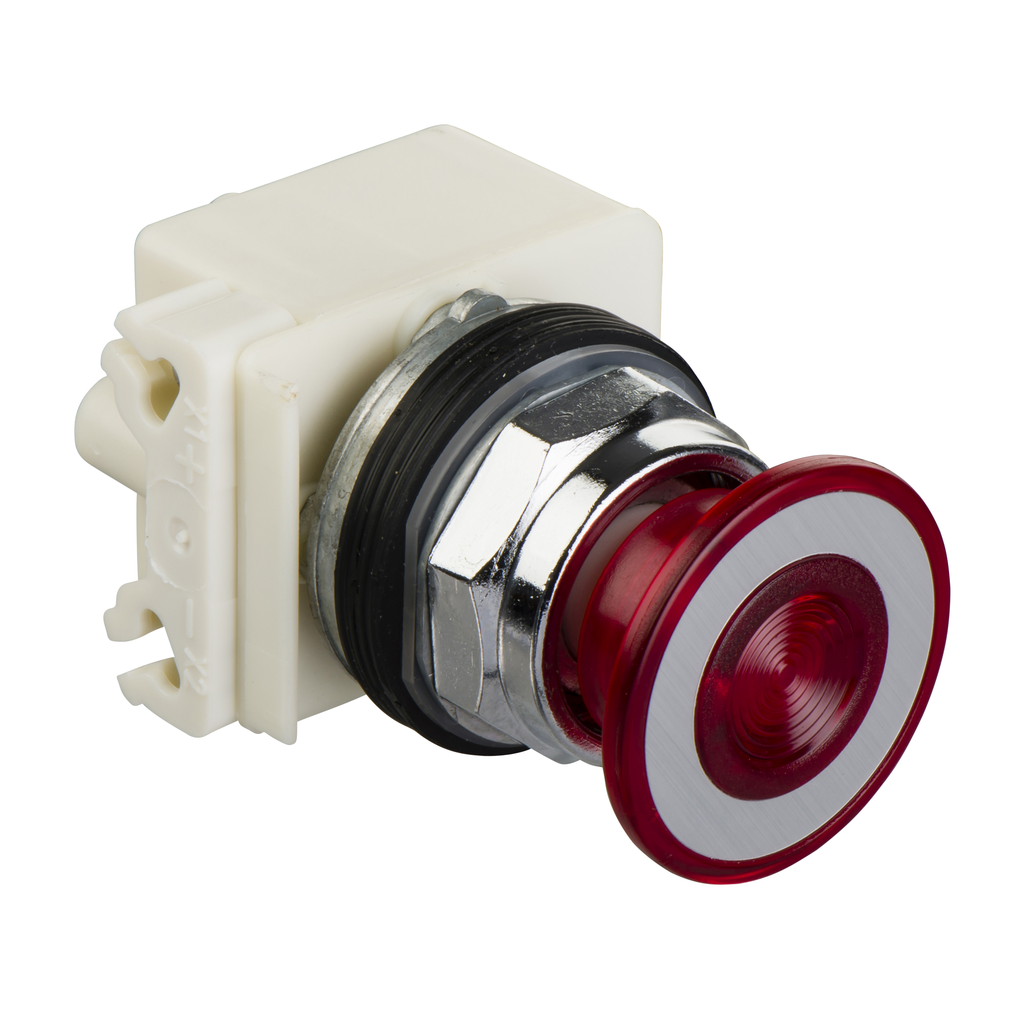

Illuminated push button head, Harmony 9001K, metal, mushroom 41mm, red, 30mm, 2 positions, push-pull, LED red, 24...28V
This red illuminated push button is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with a red mushroom diameter 41mm, unmarked It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions stay put operator and it is supplied with 24V AC/DC and with super bright LED, included. It weighs 186g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Light Block Supply | direct |
| Type Of Operator | stay put |
| Product Or Component Type | head for illuminated push-button |
| Operator Profile | red mushroom Ø 41 mm, unmarked |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...28 V |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| Operator Additional Information | screw-on plastic |
| Light Source | LED |
| Mounting Diameter | 30 mm |
| Operator Profile | mushroom Ø 41 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | red |
| Net Weight | 0.186 kg |
| Size | 30 mm |
| Contacts Type And Composition | without contact block |
| Light Source | incandescent |
| Bezel Material | metal |
| Light Source Colour | red |
| Operator Position Information | 2 positions |
| Mechanical Durability | 5000000 cycles |
| Compatibility Code | 9001K |
| Type Of Operator | push-pull |
| Operating Position | any position |
| Bulb Base | BA 9s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TC |
