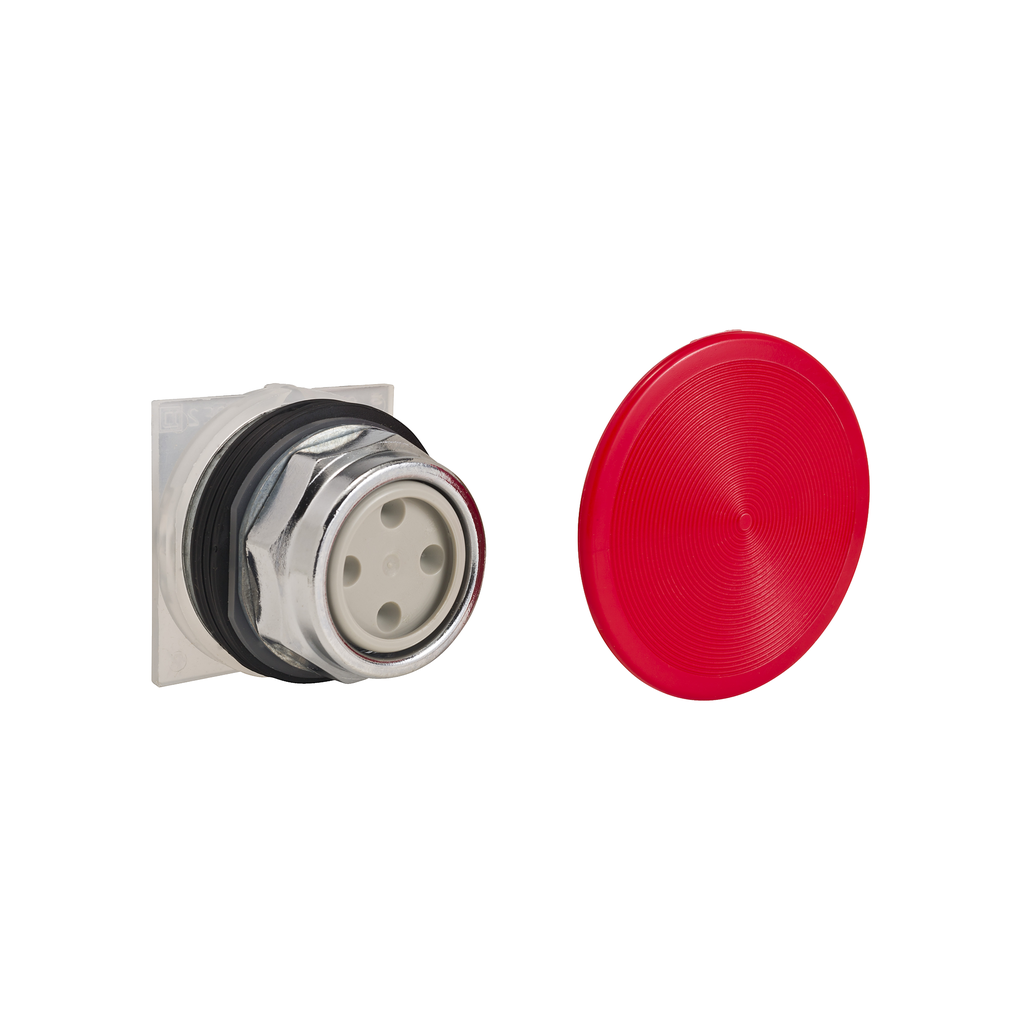

This Harmony 9001K, modular red push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape and 57mm mushroom head and 1 x NO + 1 x NC contacts. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | snap-in plastic |
---|---|
Range Of Product | Harmony 9001K |
Operator Profile | red mushroom Ø 57 mm |
Type Of Operator | spring return |
Product Or Component Type | push-button |
Device Short Name | K |
Warranty | 18 months |
Contacts Type And Composition | 1 C/O |
Light Source | without |
Bezel Material | metal |
[Ie] Rated Operational Current |
|
Connections - Terminals | screw clamp terminals |
Contact Operation | standard |
Light Block Supply | without supply |
Mounting Diameter | 30 mm |
Operator Profile | mushroom Ø 57 mm |
Type Of Operator | spring return |
Operating Position | any position |
Cap/Operator Or Lens Colour | red |
Size | 30 mm |
Device Presentation | complete product |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121006EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1/2/3/3R/4/6/12/13 |
