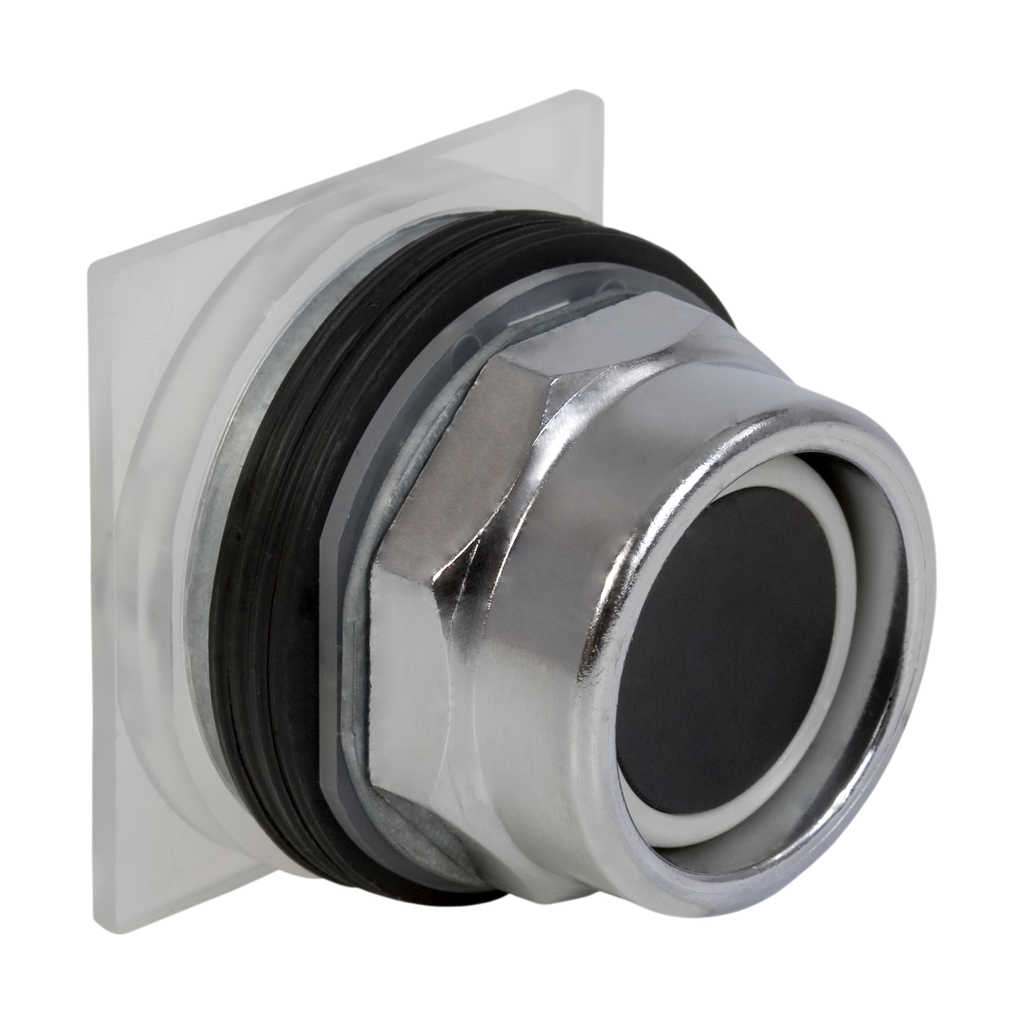

Head for spring return push button, Harmony 9001K, metal, recessed, black, 30mm
This Harmony 9001K, modular recessed black push button with extended guard has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel. This recessed push button with extended guard provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and is easily connected to control circuits. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | metal guard |
|---|---|
| Range Of Product | Harmony 9001K |
| Operator Profile | black flush |
| Product Or Component Type | head for push-button |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Mounting Diameter | 30 mm |
| Type Of Operator | spring return |
| Operator Profile | recessed |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | black |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Documents
- Spec Sheet
- Harmony 22mm and 30mm Push Button Selection Guide - Brochure - 9001BR9401 (pdf)
- Harmony 9001K/9001SK 30mm Push Buttons Brochure - 9001BR1001_30mmPushButtons (pdf)
- Industrial Automation and Control Product Lines Brochure - 998-20256927_2019_Line_Card_GM (pdf)
- Momentary, Non-Illuminated Mushroom Button Operators Installation Instructions - 30072-100-06_03 (pdf)
- Digest Catalog 19: Push Buttons and Operator Interface (MAY 2019) - 0100CT1901_SEC-19 (pdf)
