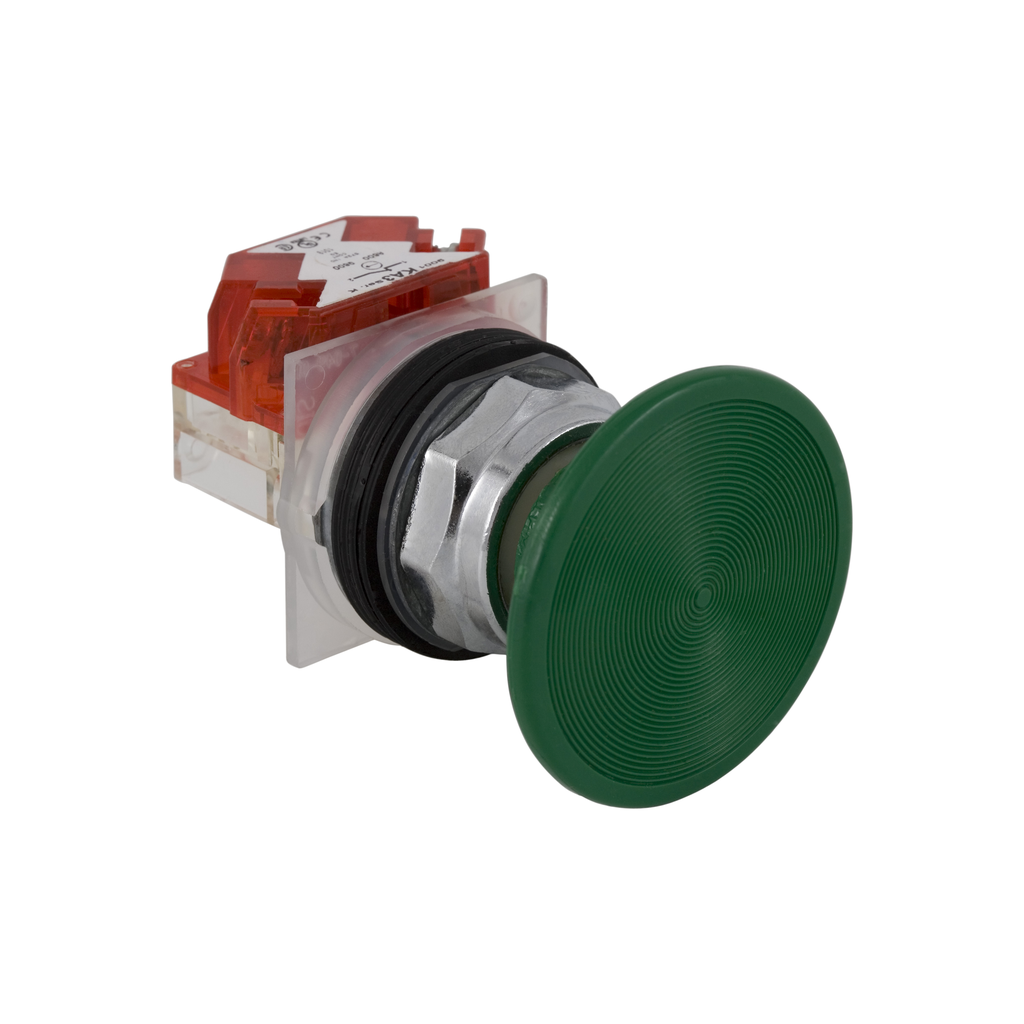

Head for spring return push button, Harmony 9001K, metal, mushroom 57mm, green, 30mm
This Harmony 9001K, modular green push button has 2 positions, operates with spring return mechanism. It has a chromium-plated metal bezel, a round shape with 57mm mushroom head. This 57mm mushroom shaped push button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | screw-on plastic with set screw |
|---|---|
| Range Of Product | Harmony 9001K |
| Operator Profile | green flush |
| Product Or Component Type | head for push-button |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Contacts Type And Composition | without contact block |
| Bezel Material | metal |
| Mounting Diameter | 30 mm |
| Type Of Operator | spring return |
| Operator Profile | mushroom Ø 57 mm |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
