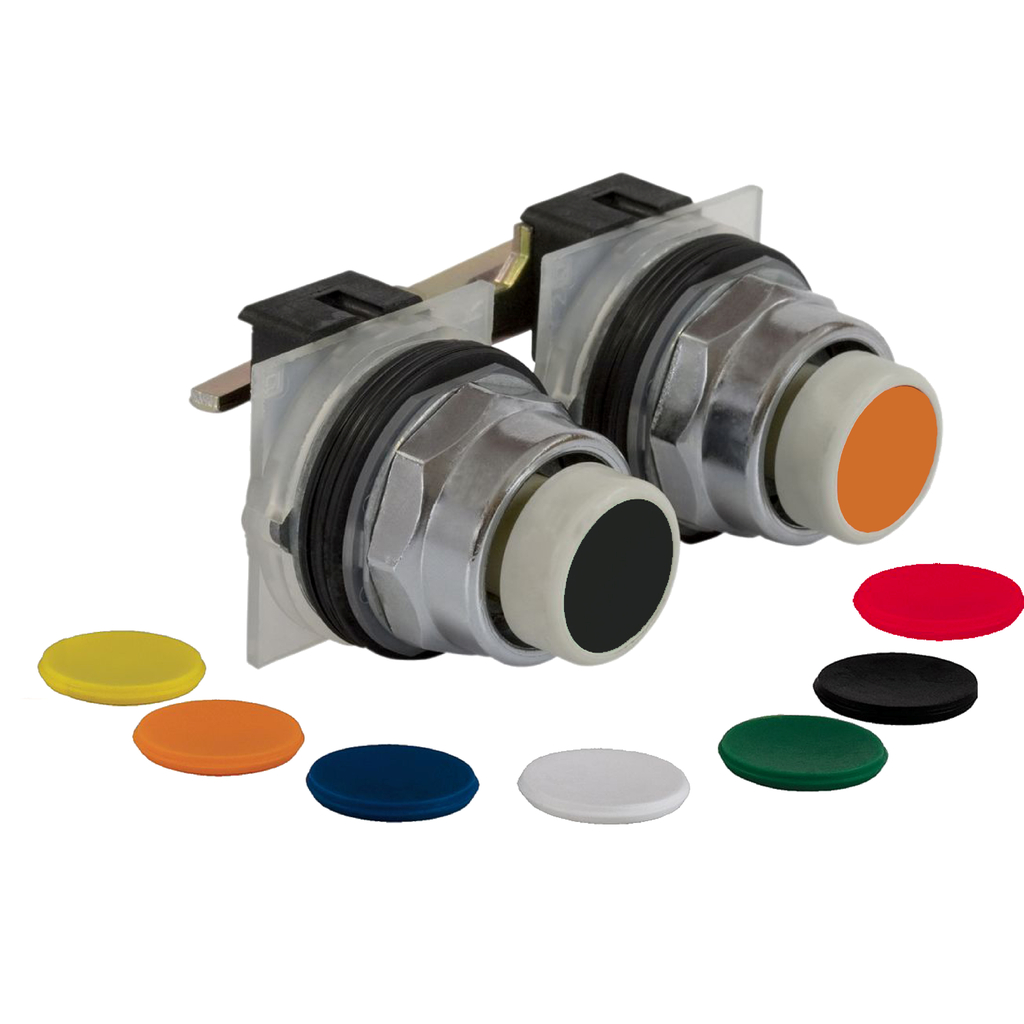

Double-headed push-button, Harmony 9001K, metal, flush, 7 colours choice, 30mm, stay put, with mechanical interlocking, 2 C/O
This Harmony 9001K, illuminated dual mechanically interlocked dual push buttons has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, has 1 x NO + 1 x NC contact and uses screw-clamp terminals. This illuminated dual mechanically interlocked push buttons enables machine builders to easily add required control and signalling functionality on their machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It offers 7 colors cap for customisation where the schematic is clearly distinguishable. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony 9001K |
|---|---|
| Operator Profile | flush 7 colours choice unmarked |
| Type Of Operator | 2 stay put |
| Product Or Component Type | double-headed push-button |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Contacts Type And Composition | 2 C/O |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse EN/IEC 60947-5-1 |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Connections - Terminals | screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1 |
| Contacts Material | silver alloy contacts |
| Mechanical Durability | 5000000 cycles |
| Positive Opening | without |
| Mounting Diameter | 30 mm |
| Operating Position | any position |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rated Breaking Capacity |
|
| Shape Of Signaling Unit Head | octagonal |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Shape Of Screw Head | cross slotted |
| Net Weight | 0.54 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV EN/IEC 60947-1 |
| Device Presentation | complete product |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
