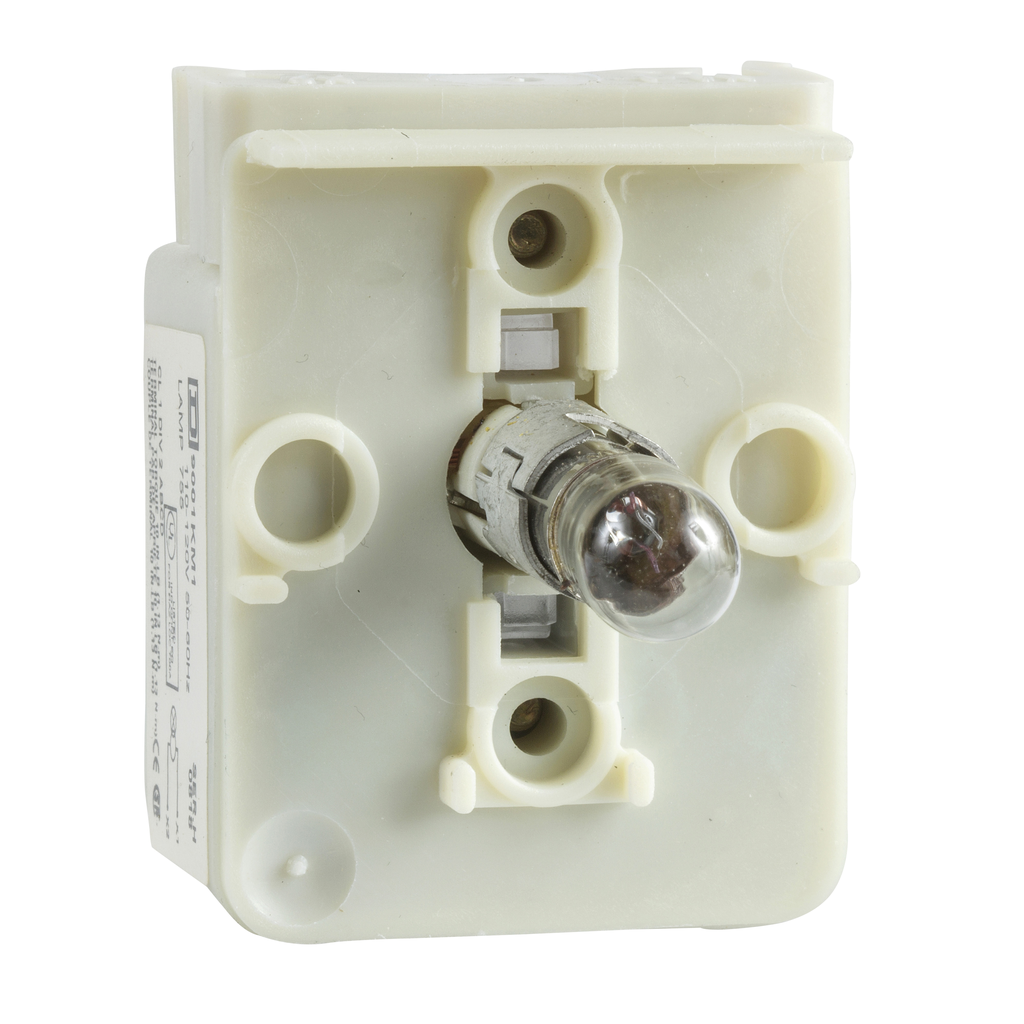

Light block, Harmony 9001K, Harmony 9001SK, 30mm, incandescent bulb, 24...28V
This light blocks is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is supplied with 12V AC/DC via integral resistance and includes a BA 9s 6 V bulb incandescent. It is compatible with pilot lights and illuminated pushbuttons of Harmony 9001K and Harmony 9001SK ranges. It weighs 50g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Light Block Supply | direct via integral resistance |
| Product Or Component Type | light block |
| Device Short Name | 9001K |
| Bulb Base | BA 9s |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24...28 V |
| Light Source | incandescent bulb |
| Light Block Supply | full voltage |
| Net Weight | 0.05 kg |
| Size | 30 mm |
| [Us] Rated Supply Voltage | 24 V AC/DC |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP20 IEC 60529 |
