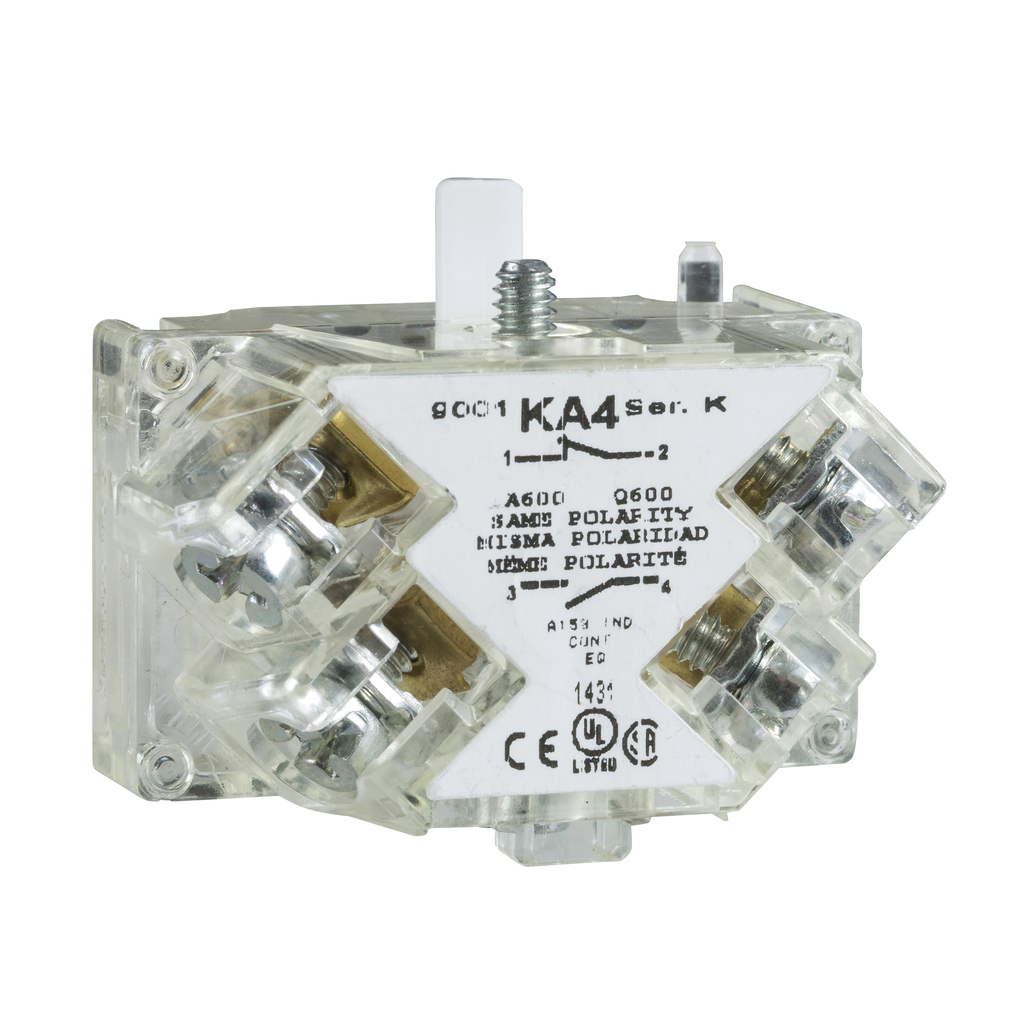

Contact block, Harmony 9001K, Harmony 9001SK, silver alloy contacts, screw clamp terminal, 0-600V, early make, 1 NO
This Schneider Electric Harmony 9001K standard contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contacts. It is compatible with Harmony 9001K push-buttons and switches. It fits in a 30mm hole. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push-button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Clear labelling of the contact wiring and terminals names on the side of the block. Clear color scheme for NO and NC contact block types. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Product Or Component Type | contact block |
| Device Short Name | 9001K |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 0...600 V |
| Connections - Terminals | screw-clamp terminals |
| Terminals Description Iso N°1 | (1-2-3-4)OC_OFF |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Contacts Material | silver alloy contacts |
| Positive Opening | without |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rated Breaking Capacity |
|
| Net Weight | 0.027 kg |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Contacts Type And Composition | 1 NO |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Contact Operation | early make |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Shape Of Screw Head | cross slotted |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP20 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
