9001K33

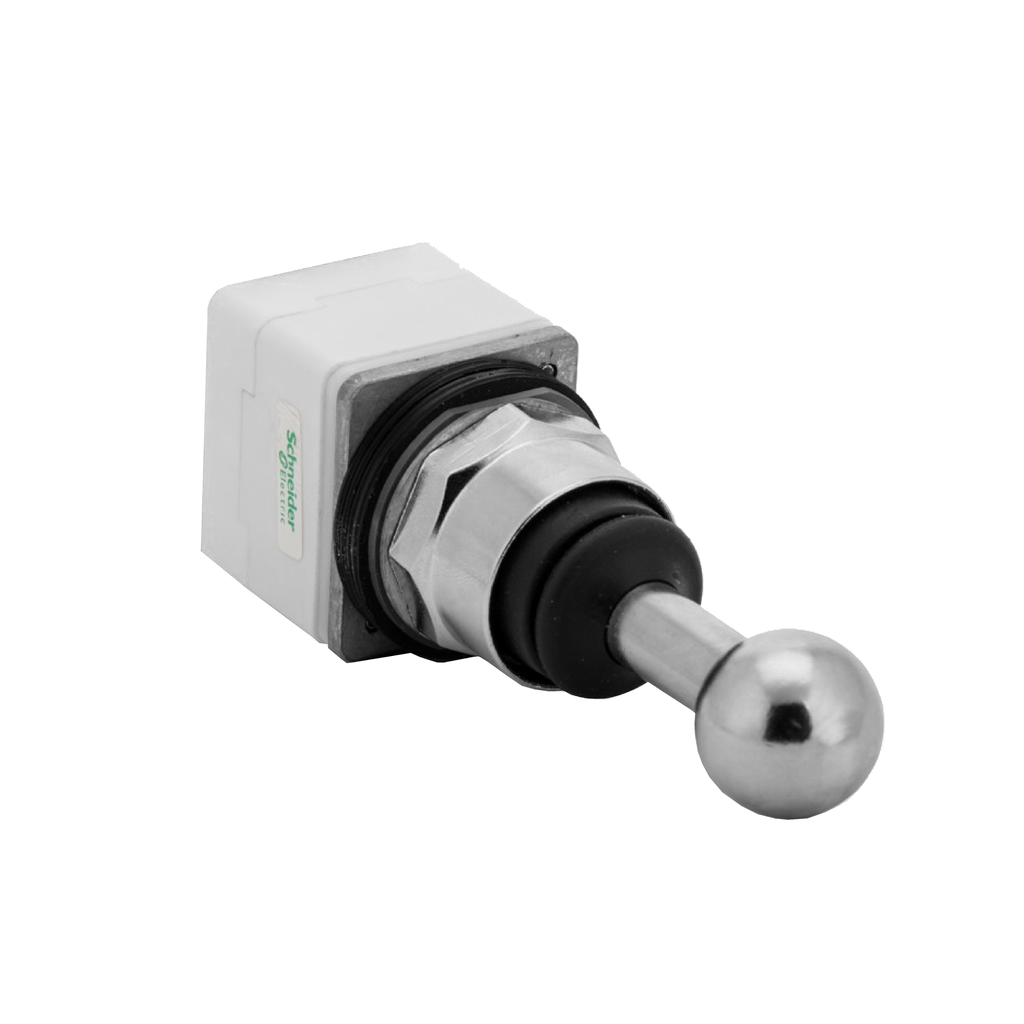

Joystick controller head, Harmony 9001K, metal, 30mm, 2 directions, spring return to center
Specifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Range Of Product | Harmony 9001K |
| Operator Profile | 80 mm long operating shaft |
| Type Of Operator | spring return |
| Product Or Component Type | head for joystick controller |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Contacts Usage | standard |
| Contacts Type And Composition | without contact block |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Positive Opening | with IEC 60947-5-2 |
| Mounting Diameter | 30 mm |
| Operating Position | any position |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Shape Of Signaling Unit Head | octagonal |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Net Weight | 0.372 kg |
| Shape Of Screw Head | cross slotted |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Device Presentation | basic element |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Standards |
|
| Nema Degree Of Protection |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
