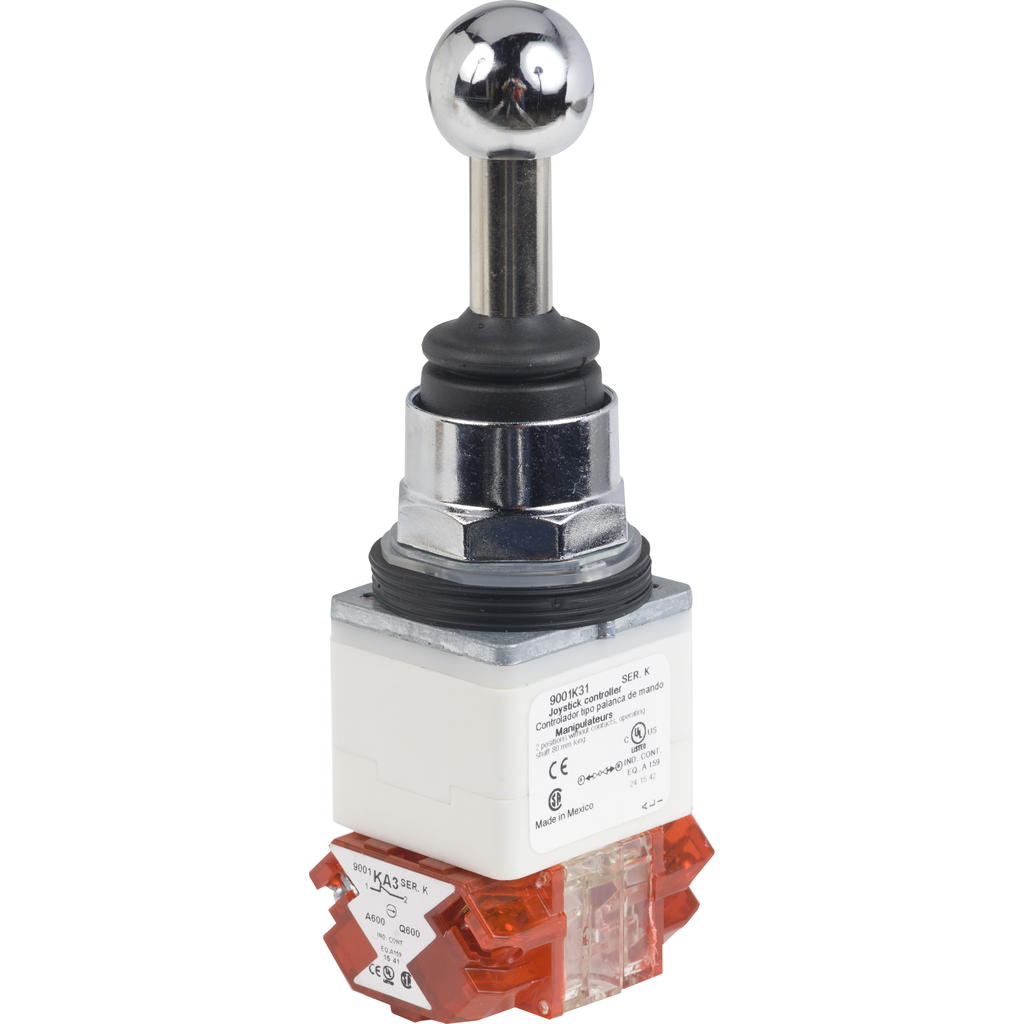

Joystick controller, Harmony 9001K, metal, 30mm, 2 directions, spring return to center, 2 NC
This Harmony 9001K, joystick controller has 3 positions, operates with spring return to center position mechanism. It has a chromium-plated metal bezel. This complete joystick controller provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Sale Per Indivisible Quantity | 1 |
|---|---|
| Range Of Product | Harmony 9001K |
| Operator Profile | 80 mm long operating shaft |
| Type Of Operator | to centre spring return |
| Product Or Component Type | joystick controller |
| Device Short Name | 9001K |
| Warranty | 18 months |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Contacts Usage | standard |
| [Icm] Rated Short-Circuit Making Capacity |
|
| Contacts Type And Composition | 2 NC |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| Short-Circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Bezel Material | metal |
| [Ie] Rated Operational Current |
|
| Contact Operation | standard |
| Contacts Material | silver alloy contacts |
| Positive Opening | with IEC 60947-5-2 |
| Mounting Diameter | 30 mm |
| Operating Position | vertical |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| Rated Breaking Capacity |
|
| Shape Of Signaling Unit Head | octagonal |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Net Weight | 0.372 kg |
| Shape Of Screw Head | cross slotted |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Device Presentation | complete product |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP121006EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | II IEC 61140 |
| Standards |
|
| Nema Degree Of Protection |
|
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TC |
| Ip Degree Of Protection | IP66 IEC 60529 |
