Range Of Product | Harmony 9001K |
---|---|
Operator Profile | blue standard knob |
Type Of Operator | maintained |

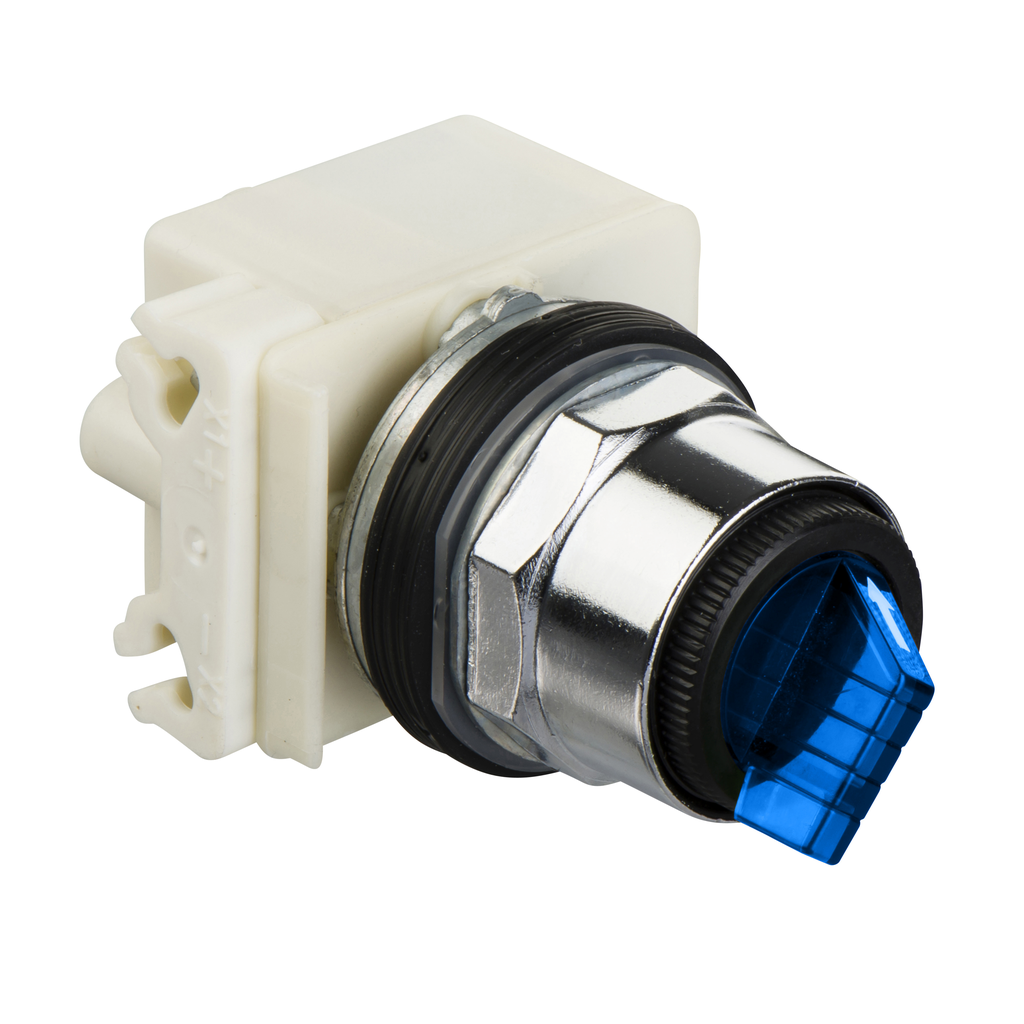

Product Or Component Type | illuminated selector switch |
Device Short Name | 9001K |
[Us] Rated Supply Voltage | 24...28 V AC/DC |
Contacts Type And Composition | without contact block |
Light Source | LED |
Bezel Material | chromium plated metal |
Operator Position Information | 2 positions |
Mechanical Durability | 500000 cycles |
Light Block Supply | direct |
Mounting Diameter | 30 mm |
Shape Of Signaling Unit Head | round |
Net Weight | 0.245 kg |
Bulb Base | BA 9s |
Device Presentation | basic element |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP121006EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Standards |
|
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 61140 |
Shock Resistance | 50 gn IEC 60068-2-27 |
Vibration Resistance | 7 gn 2-500 Hz)IEC 60068-2-6 |
Protective Treatment | TC |
Ip Degree Of Protection | IP66 IEC 60529 |
