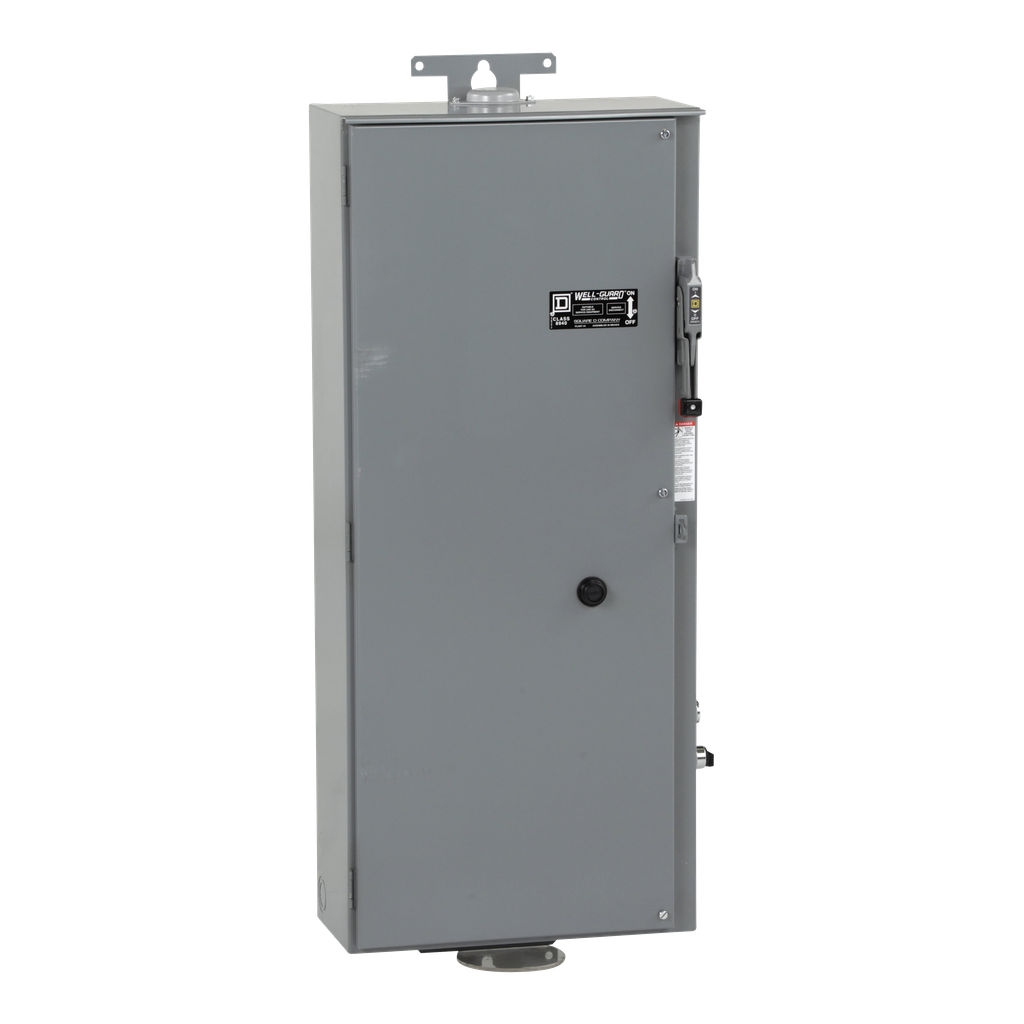

Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 100A fusible disconnect switch. This NEMA Size 3 starter has a 50 HP at 480 VAC three phase rating and has a maximum rating of 90 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 49.00 inches tall, 19.15 inches wide and 10.37 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueProduct Name | Well-Guard Control |
---|---|
Device Application | pumping |
Device Short Name | class 8940 type SS |
Warranty | 18 months |
Thermal Overload Type | Motor Logic solid state class 10/20 |
Disconnector Device Type | fusible disconnect switch |
Height | 1245 mm |
Control Type |
|
Nema Size | 3 |
Device Mounting | surface |
Fuse Type | H or K |
Maximum Horse Power Rating | 50-50 hp 480 V AC, 3 phase |
[Uc] Control Circuit Voltage |
|
Electrical Connection | screw terminal |
Line Rated Current | 90 A |
Protection Type |
|
Control Circuit | separate control circuit |
Width | 522 mm |
Depth | 263 mm |
Permissible Voltage | 600 V AC |
Associated Fuse Rating | 100 A |
Number Of Poles | 3 |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Pvc Free | Yes |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | NEMA 3R |
Enclosure Type | weatherproof enclosure indoor/outdoor |
