Pump Panel, NEMA Type S, Well Guard, Size 2, 45A, 5kA SCCR, 30HP, 60A Class H and K fuse clip, Motor Logic SSOLR, 440/480VAC 50/60Hz coil, NEMA 3R

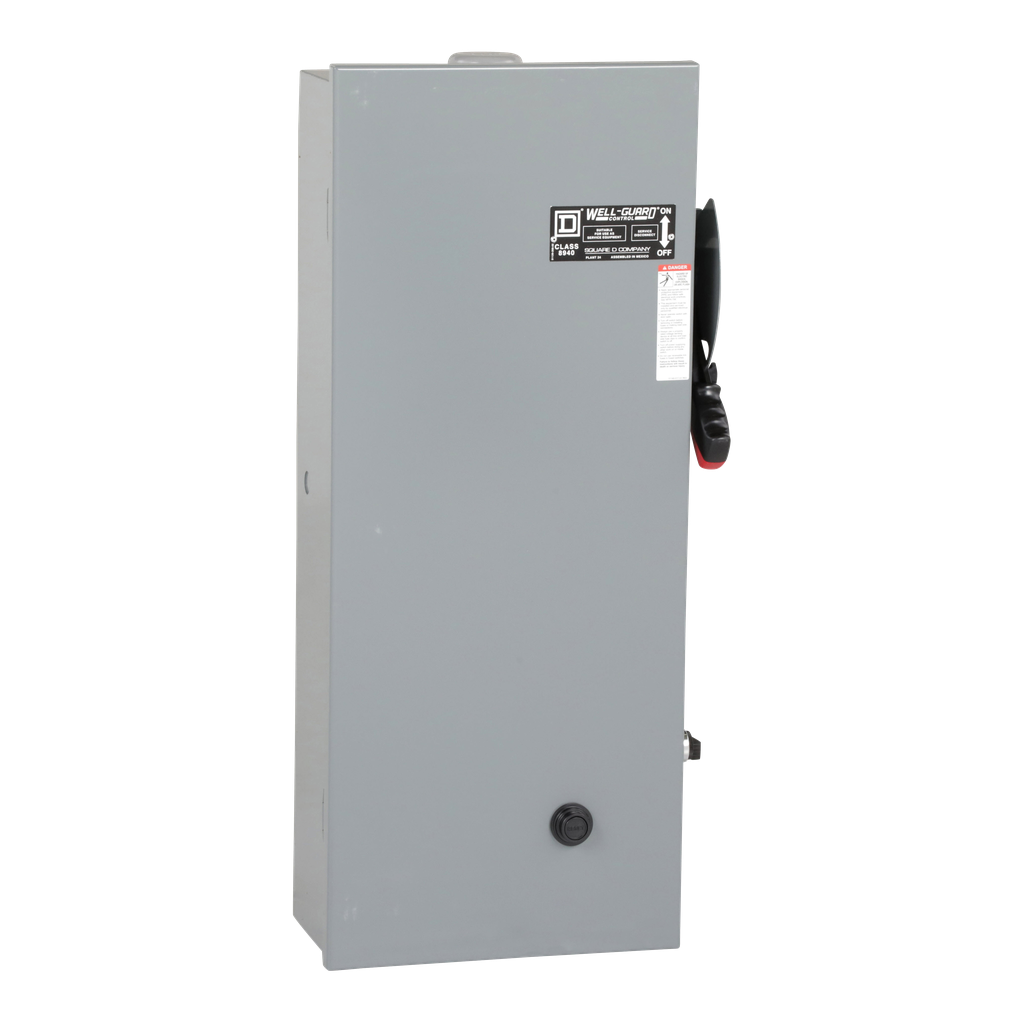

Well-Guard pumping plant panels are designed for pumping applications. These panels provide extra space for field installation of auxilliary equipment. These panels us Type S non-reversing magnetic starters. Panel has a 60A fusible disconnect switch. This NEMA Size 2 starter has a 30 HP at 200 VAC, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC three phase rating and has a maximum rating of 45 Amperes. This 3 pole starter is for three phase applications. The starters in these panels are available with a wide variety of replaceable coil voltages. The starter in this device has a 440/480 VAC 50/60 Hz operating coil wired for common control. This Well-Guard pump panel has a Motor Logic overload relay to sense over current conditions. A painted sheet steel NEMA 3R rainproof enclosure is used to protect this starter. Enclosure is 39.05 inches tall, 15.16 inches wide and 9.70 inches deep. A wide variety of accessories are available for Type S starters. This pump panel is supplied with a START momentary push button and a HAND/OFF/AUTO selector switch. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified. These NEMA pump panels with Type S starters are UL listed and marked Suitable for use as Service Equipment. They are also CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Name | Well-Guard Control |
|---|---|
| Device Application | pumping |
| Device Short Name | class 8940 type SS |
| Warranty | 18 months |
| Thermal Overload Type | Motor Logic solid state class 10/20 |
| Disconnector Device Type | fusible disconnect switch |
| Height | 992 mm |
| Control Type |
|
| Nema Size | 2 |
| Device Mounting | surface |
| Fuse Type | H or K |
| Maximum Horse Power Rating | 30-30 hp 480 V AC, 3 phase |
| [Uc] Control Circuit Voltage |
|
| Electrical Connection | screw terminal |
| Line Rated Current | 45 A |
| Protection Type |
|
| Control Circuit | common control circuit |
| Width | 385 mm |
| Depth | 246 mm |
| Permissible Voltage | 600 V AC |
| Associated Fuse Rating | 60 A |
| Number Of Poles | 3 |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Pvc Free | Yes |
| Eu Rohs Directive | Not compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 3R |
| Enclosure Type | rainproof enclosure indoor/outdoor |
