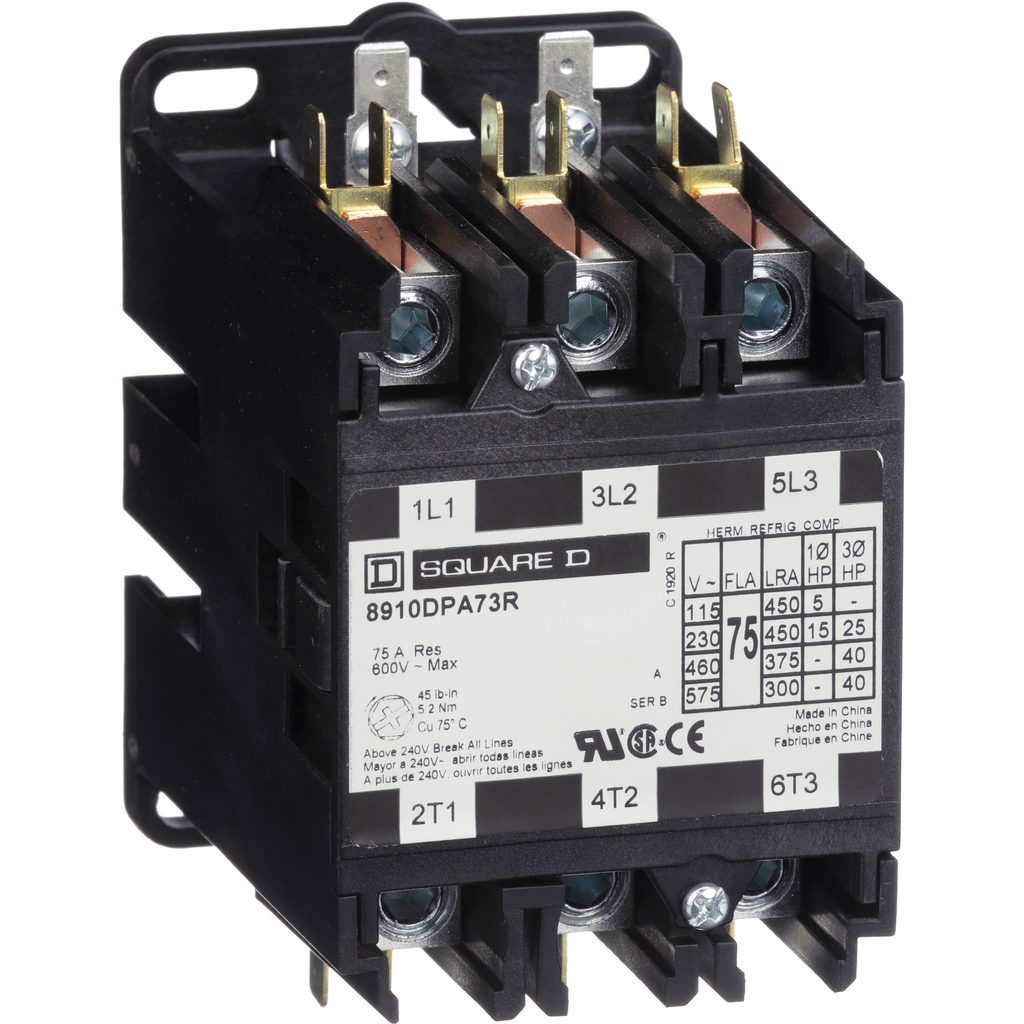

8910DPA73RV14 - Contactor, Definite Purpose, 75A, 3 pole, 40 HP at 575 VAC, 3 phase, 24/24 VAC 50/60 Hz coil, open

8910DPA73RV14

Add to Quote Catalogue

Range Of Product	DPA
Poles Description	3P
Line Rated Current	75 A
Product Or Component Type	Definite Purpose Contactor
Pole Contact Composition	3 NO
Warranty	18 months
[Uc] Control Circuit Voltage	24 V AC 50/60 Hz
Height	92.8 mm
Locked Rotor Rated Current	450 A 277 V AC 375 A 460 V AC 300 A 575 V AC
Maximum Horse Power Rating	5-5 hp 115 V AC, 1 phase 15-15 hp 230 V AC, 1 phase 25-25 hp 230 V AC, 3 phase 40-40 hp 460 V AC, 3 phase 40-40 hp 575 V AC, 3 phase
Electrical Connection	box lugs quick connect terminals
Width	104.03 mm
Depth	65 mm
Phase	3 phase
[Ue] Rated Operational Voltage	600 V AC
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Product Certifications	UL Recognized CSA
