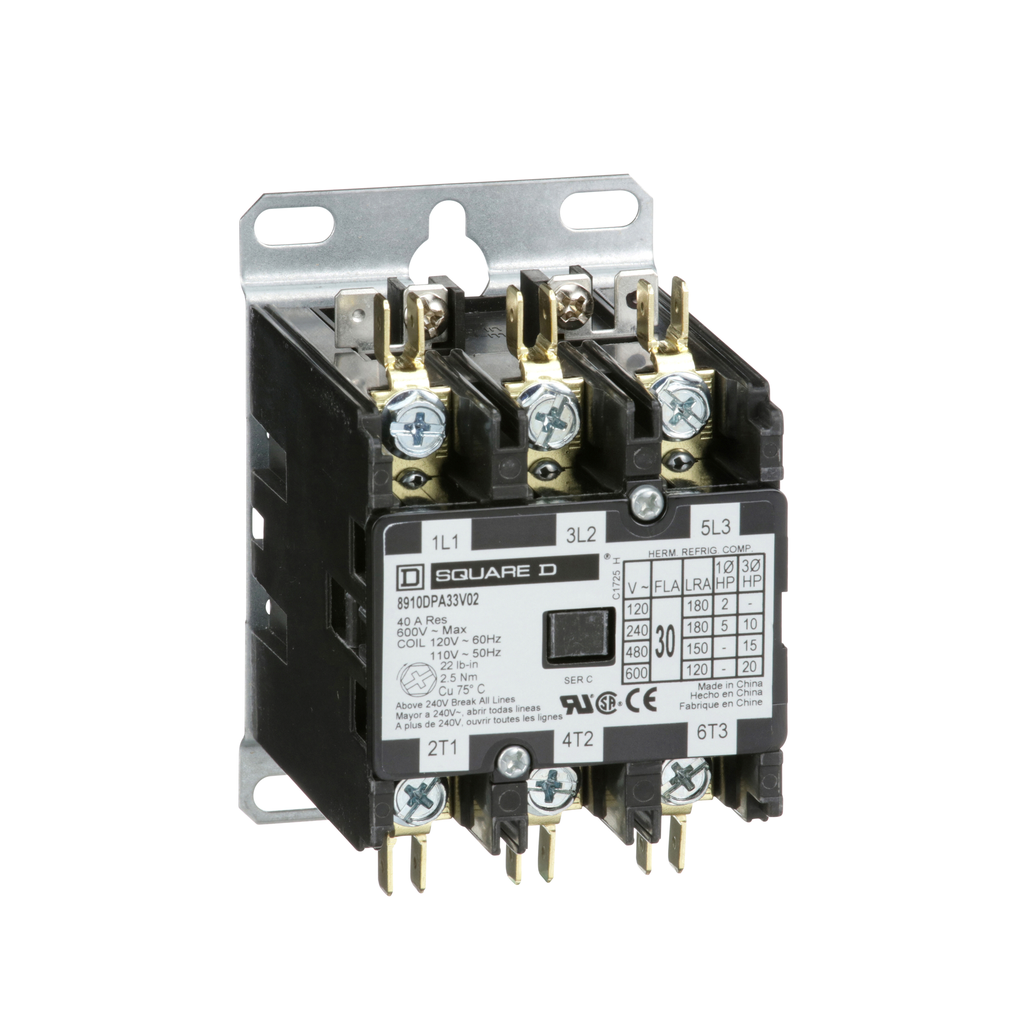

8910DPA33V02Y122Y236 - Contactor, Definite Purpose, 30A, 3 pole, 20 HP at 575 VAC, 3 phase, 110/120 VAC 50/60 Hz coil, pressure wire connector

8910DPA33V02Y122Y236

Add to Quote Catalogue

Range Of Product	DPA
Poles Description	3P
Line Rated Current	30 A
Product Or Component Type	Definite Purpose Contactor
Pole Contact Composition	3 NO
Warranty	18 months
[Uc] Control Circuit Voltage	120 V AC 60 Hz 110 V AC 50 Hz
Locked Rotor Rated Current	150 A 460 V AC 120 A 575 V AC 180 A 277 V AC
Maximum Horse Power Rating	2-2 hp 115 V AC, 1 phase 5-5 hp 230 V AC, 1 phase 10-10 hp 230 V AC, 3 phase 15-15 hp 460 V AC, 3 phase 20-20 hp 575 V AC, 3 phase
Electrical Connection	binder head pressure wire clamp
Phase	3 phase
[Ue] Rated Operational Voltage	600 V AC
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information	Yes
Mercury Free	Yes
Eu Rohs Directive	Compliant
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Product Certifications	UL Recognized CSA
