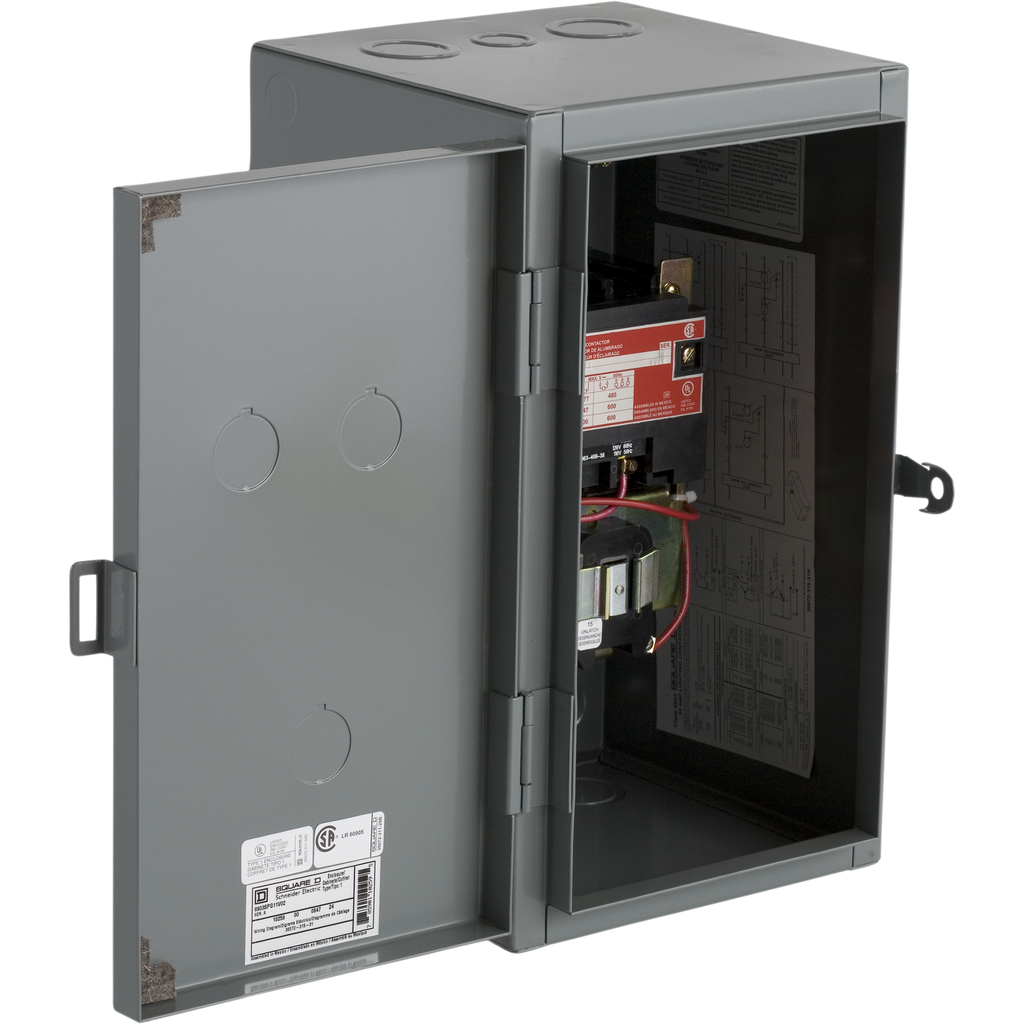

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 60 amperes. This 3 pole device has 3 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 14.12 inches tall, 8.12 inches wide and 9.73 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | S |
---|---|
Product Or Component Type | Mechanically Held Lighting Contactor |
Warranty | 18 months |
Local Signalling | without pilot light |
Height | 359 mm |
Auxiliary Contact Composition | without |
Control Type | no control units |
[Uc] Control Circuit Voltage |
|
Poles Description | 3P |
Electrical Connection | lugs |
Line Rated Current | 60 A |
Width | 206 mm |
Depth | 247 mm |
Additional Included Device | none |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Not compliant |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Degree Of Protection | NEMA 1 painted sheet steel surface none |
