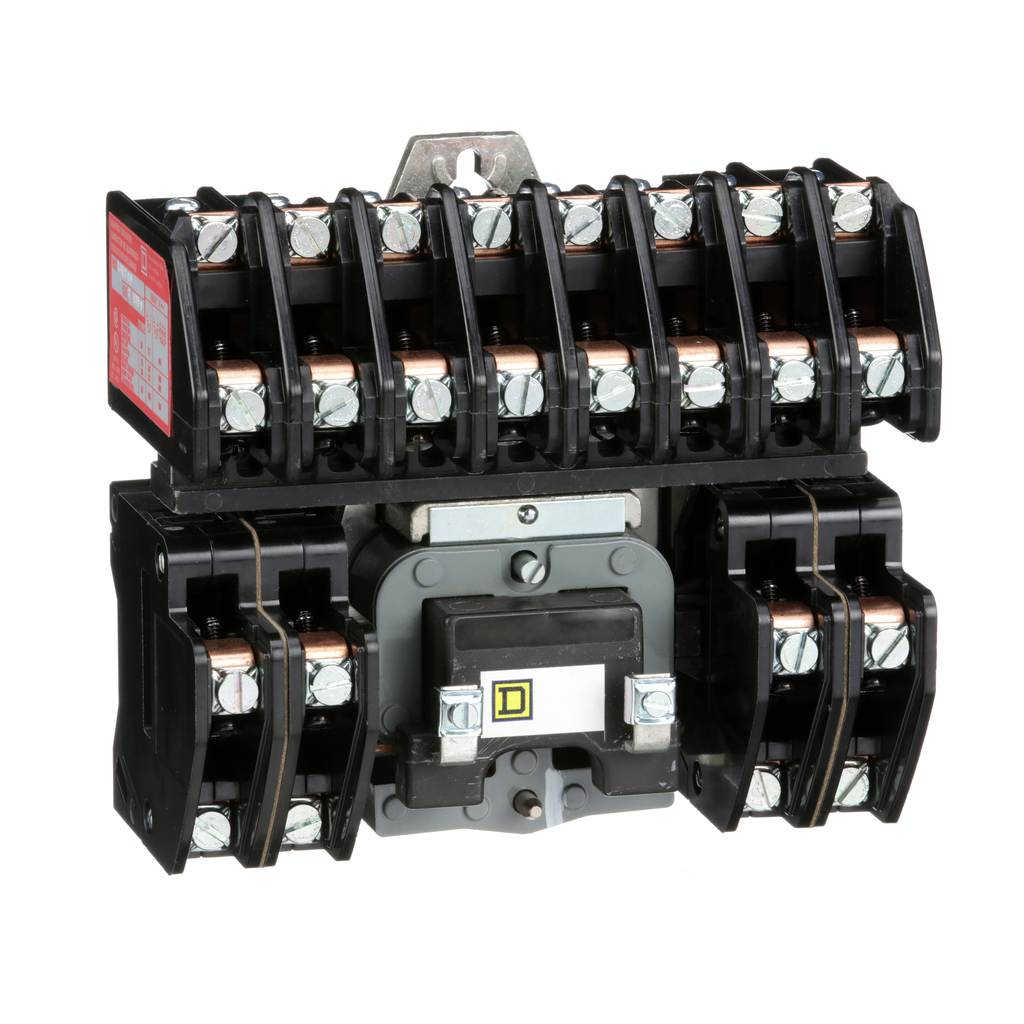

Type L multipole lighting contactors are use to manage lighting loads and to control electrical heating. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Contacts can switch up to 30A fluorescent and 20A tungsten lighting loads. The contacts are field convertible from normally open to normally closed. This 12 pole device has 12 normally closed contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. This lighting contactor is an open device without an enclosure. contactor is 5.00 inches tall, 5.63 inches wide and 3.12 inches deep. A wide variety of accessories are available for Type L lighting contactors. 8903L lighting contactors are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | 8903L |
---|---|
Control Circuit | separate control circuit |
Product Or Component Type | Electrically Held Lighting Contactor |
Warranty | 18 months |
Local Signalling | no indicator |
Height | 127 mm |
Control Type | no control units |
[Uc] Control Circuit Voltage |
|
Hold-In Power Consumption In Va |
|
Electrical Connection | screw-clamp terminals |
Width | 143 mm |
Depth | 79 mm |
Line Rated Current |
|
Inrush Power In Va |
|
Poles Description | 12P 12 NC |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1407018EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Compliant |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Halogen Content Performance | Halogen free plastic parts product |
Reach Free Of Svhc | Yes |
Product Certifications |
|
Nema Degree Of Protection | not rated (open device) |
