Range Of Product | S |
---|---|
Control Circuit | separate control circuit |

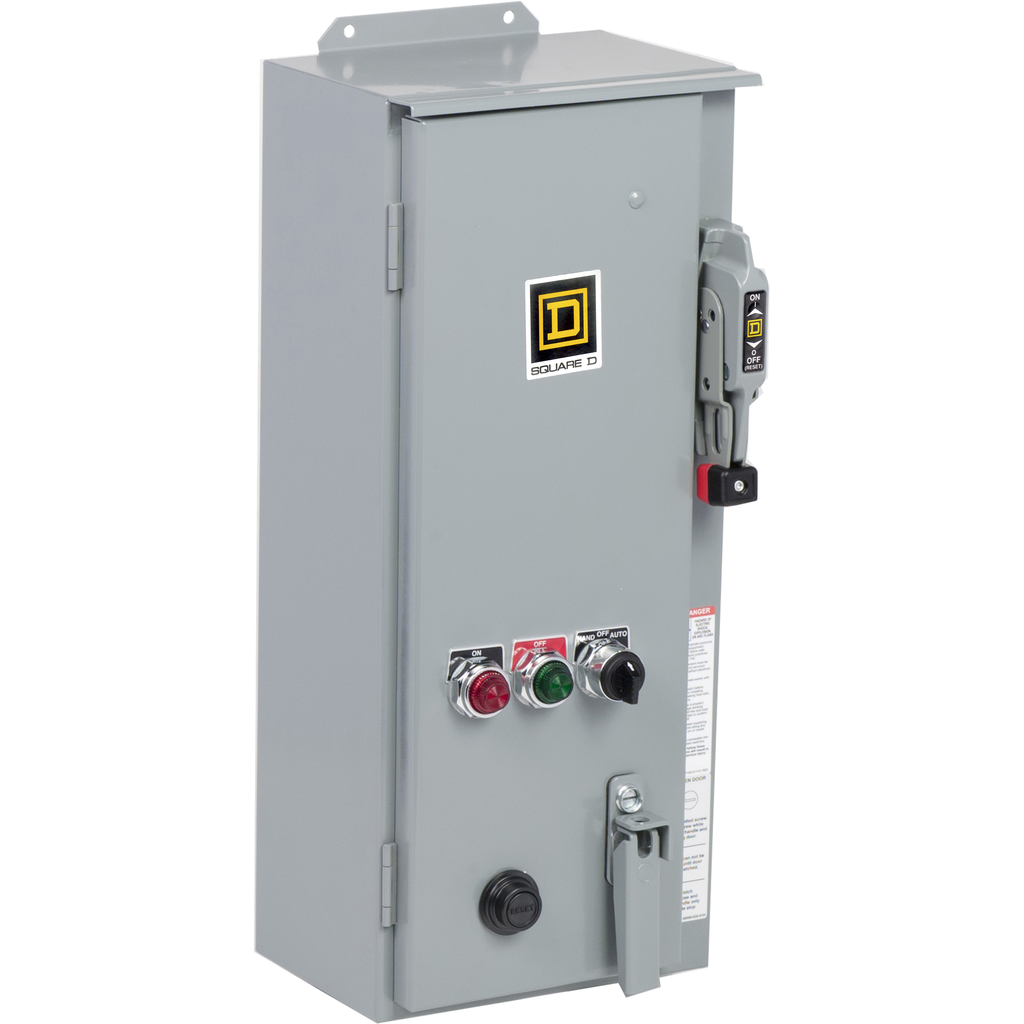

Product Or Component Type | Combination Starter |
Warranty | 18 months |
Disconnector Device Type | circuit breaker, 50 A, electrical SPDT |
Motor Starter Type | non reversing |
Thermal Overload Type | solid state Motor Logic class 10/20 15-45 A |
Local Signalling |
|
Height | 27.75 in |
Auxiliary Contact Composition | 2 NO + 2 NC |
Control Type | selector switch HAND-OFF-AUTO) |
Circuit Breaker Type | eMCP |
Maximum Horse Power Rating |
|
[Uc] Control Circuit Voltage |
|
Poles Description | 3P |
Width | 10.5 in |
Depth | 9.59 in |
Length | 3.25 in |
Breaking Capacity |
|
[Ue] Rated Operational Voltage | 600 V AC |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Under investigation |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Nema Size | 2 |
Nema Degree Of Protection | NEMA 12 painted sheet steel with external reset |
