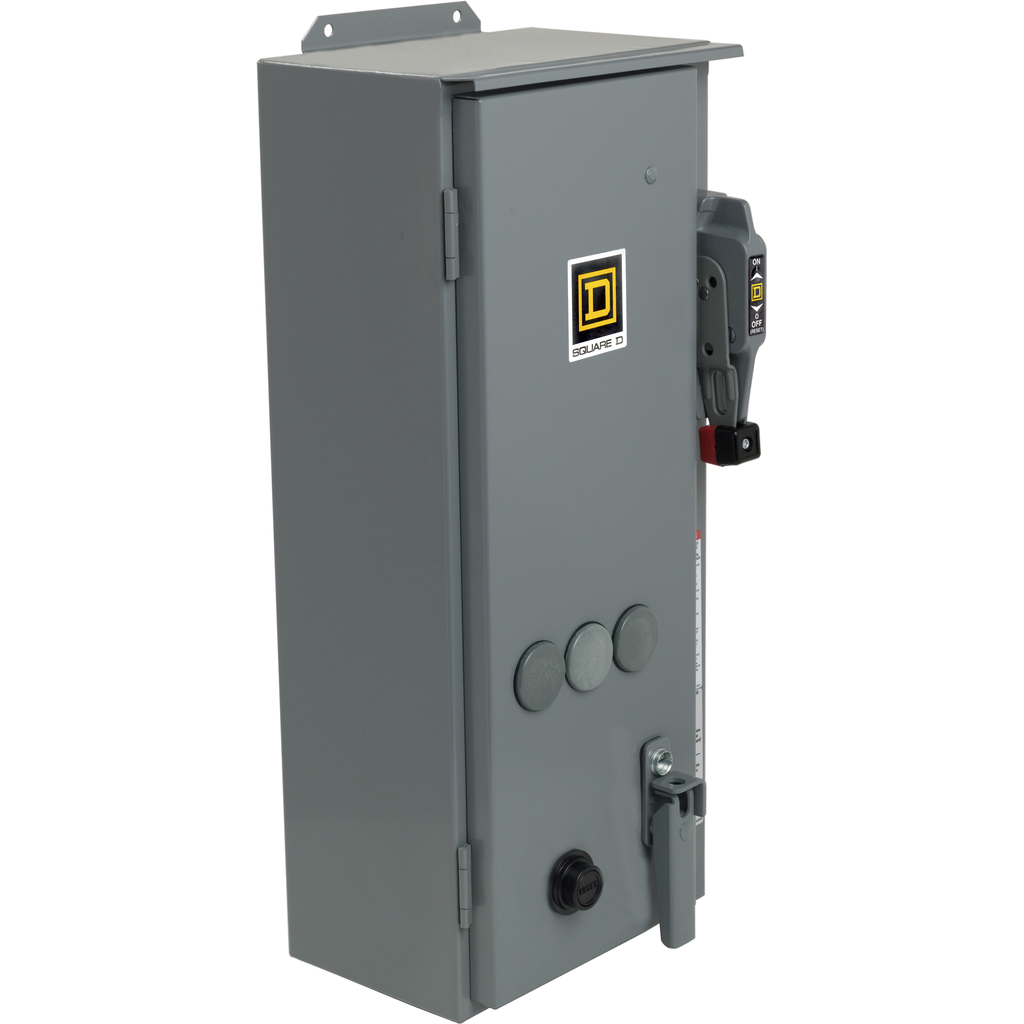

NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 10HP at 600VAC 3 phase, melting alloy, 120VAC coil, NEMA 12
Type S nonreversing thermal magnetic circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of 0.25 to 5 HP at 208 VAC, 0.25 to 7.5 HP at 240 VAC and 0.25 to 10 HP at 480 and 600 VAC three phase. Combination starter has a HHL36030M71 circuit breaker. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 Dusttight and driptight industrial enclosure is used to protect this starter. Enclosure is 24.00 inches tall, 9.50 inches wide and 9.84 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | S |
|---|---|
| Control Circuit | separate control circuit |
| Product Or Component Type | Combination Starter |
| Warranty | 18 months |
| Disconnector Device Type | Mag-Gard circuit breaker |
| Motor Starter Type | non reversing |
| Thermal Overload Type | melting alloy 3 |
| Local Signalling | no indicator |
| Auxiliary Contact Composition | without |
| Control Type | no control units |
| Maximum Horse Power Rating |
|
| [Uc] Control Circuit Voltage |
|
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Nema Size | 1 |
| Nema Degree Of Protection | NEMA 12 painted sheet steel with external reset |
