NEMA Combination Starter, Type S, 30A fusible disconnect, Size 1, 27A, melting alloy overload, 120VAC coil, NEMA 3R/12

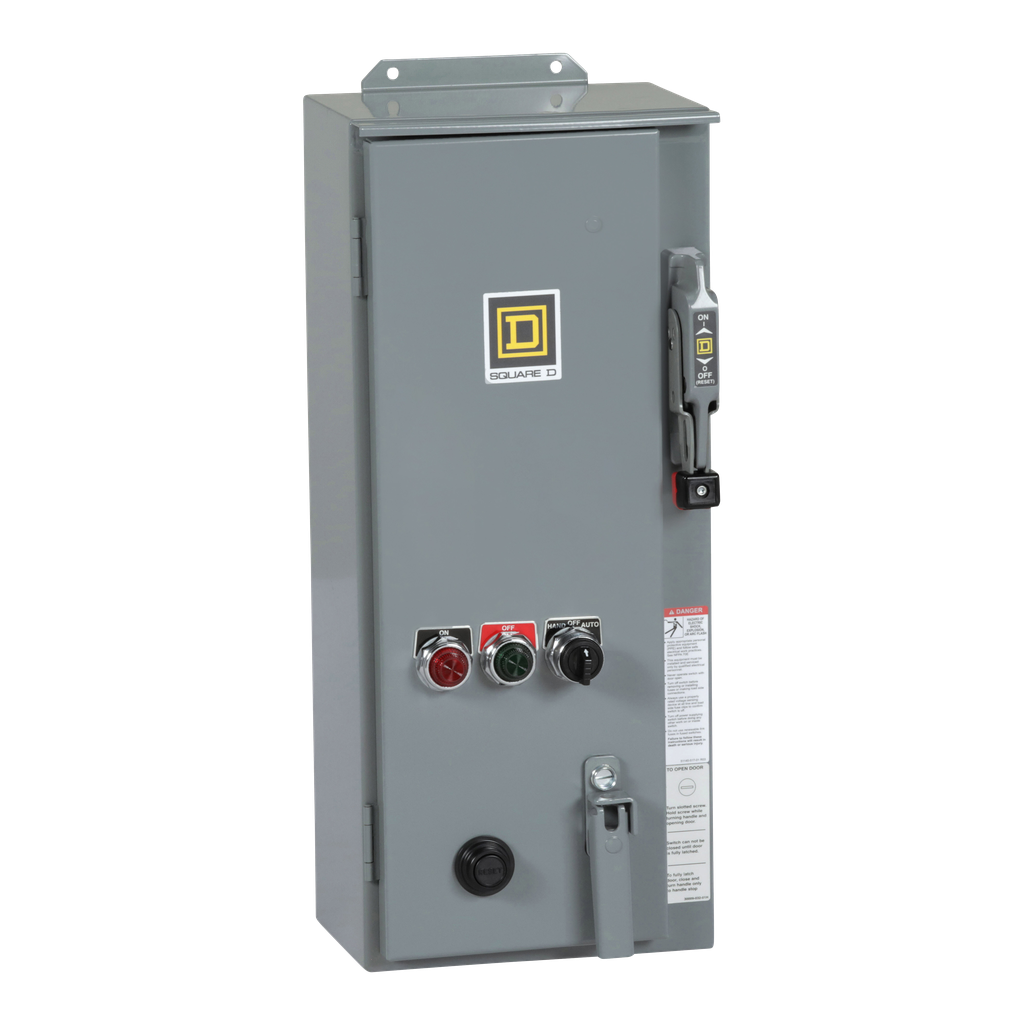

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 24.0 inches tall, 8.34 inches wide and 9.5 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HAND/OFF/AUTO selector switch, a red LED pilot light and a green LED pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | S |
|---|---|
| Control Circuit | separate control circuit |
| Product Or Component Type | Combination Starter |
| Warranty | 18 months |
| Disconnector Device Type | fusible disconnect switch H and K, 30 A, electrical SPDT |
| Motor Starter Type | non reversing |
| Thermal Overload Type | melting alloy 3 |
| Local Signalling |
|
| Height | 24 in |
| Auxiliary Contact Composition | 2 NO + 2 NC |
| Nema Size | 1 |
| Control Type | selector switch HAND-OFF-AUTO) |
| Maximum Horse Power Rating |
|
| [Uc] Control Circuit Voltage |
|
| Poles Description | 3P |
| Line Rated Current | 27 A |
| Width | 9.5 in |
| Depth | 8.34 in |
| Length | 3.25 in |
| [Ue] Rated Operational Voltage | 600 V AC |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 12 painted sheet steel with external reset |
