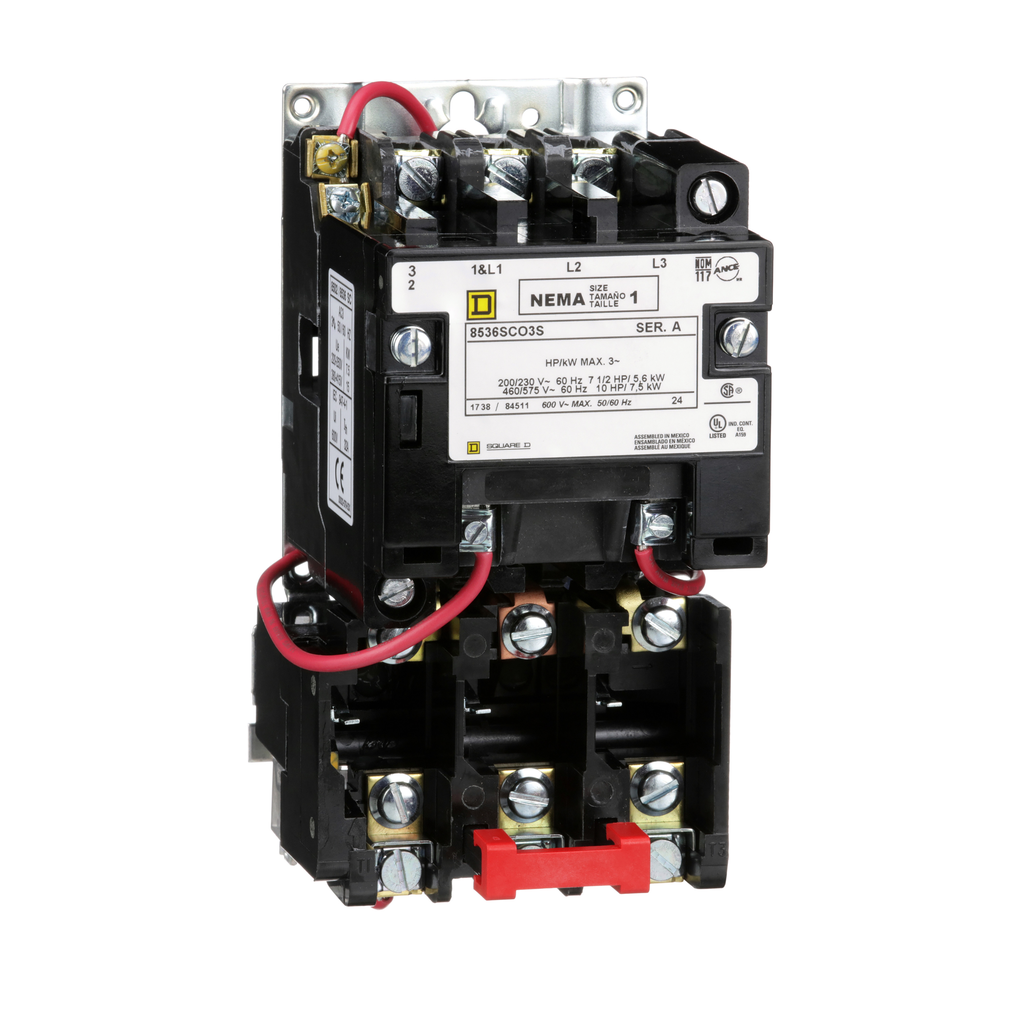

NEMA motor starter, Type S, nonreversing, Size 1, 27A, 10 HP at 460VAC, 5kA SCCR, 3 phase, 3 pole, melting alloy, 24VAC coil, open
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 1 non-reversing starter has a 27 ampere rating. This NEMA Size 1 motor starter has 3 phase ratings of 7.5 HP at 200 and 230 VAC and 10 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | S |
|---|---|
| Product Or Component Type | motor starter |
| Motor Starter Type | non reversing |
| Warranty | 18 months |
| Thermal Overload Type | melting alloy 3 |
| Height | 172 mm |
| Auxiliary Contact Composition | without |
| Nema Size | 1 |
| [Uc] Control Circuit Voltage | 24 V AC 60 Hz |
| Rated Power In Hp |
|
| Control Type | no control units |
| Phase | 3 phase |
| Local Signalling | without pilot light |
| Poles Description | 3P |
| Electrical Connection | screw clamp terminals |
| Line Rated Current | 27 A |
| Control Circuit | separate control circuit |
| Width | 89 mm |
| Depth | 107 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Product Certifications |
|
| Nema Degree Of Protection | not rated (open device) |
