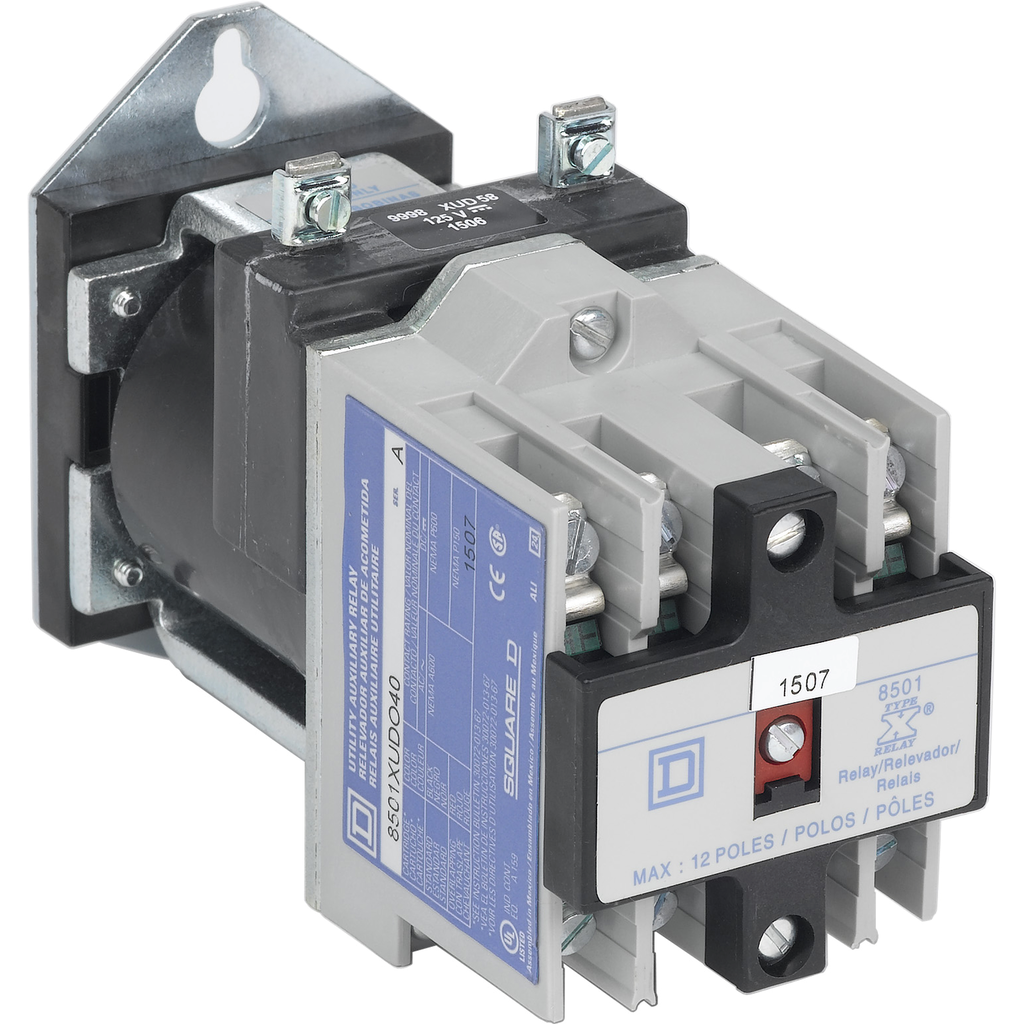

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
Brand: Schneider Electric
Add to Quote CatalogueProduct Certifications |
|
---|---|
[Uc] Control Circuit Voltage | 24 V DC |
Height | 3.56 in |
Ambient Air Temperature For Operation | -40-160 °F |
Line Rated Current |
|
Relay Type | utility |
Range Of Product | 8501X |
Mounting Support | panel |
Poles Description | 4P |
Electrical Connection | screw clamp terminals |
Contacts Type And Composition | 4 NO 4 standard contact cartridges |
Product Or Component Type | relay |
Operating Time |
|
Width | 2.23 in |
Depth | 5.17 in |
Maximum Switching Voltage | 250 V DC |
Warranty | 18 months |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1310013 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1310013EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
