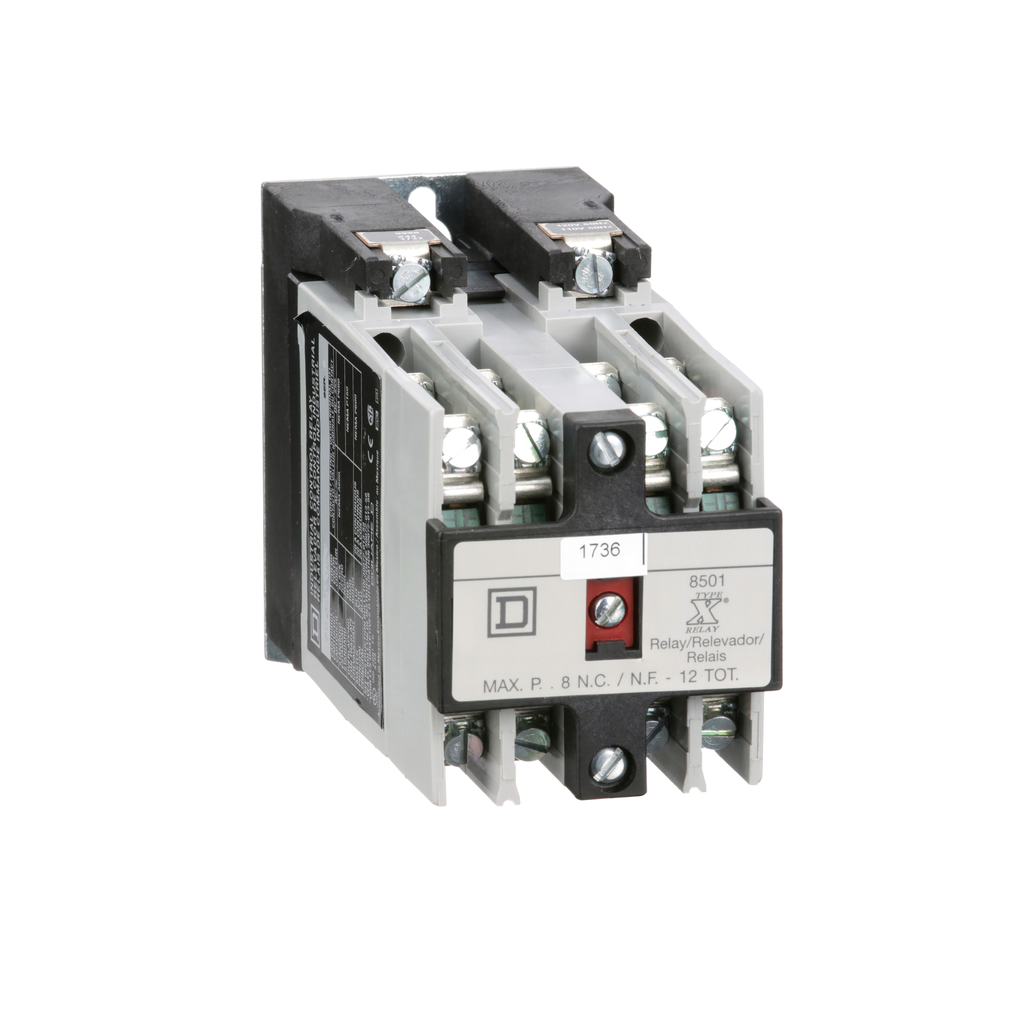

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. This relay has a 10 ampere continuous current rating. It also has an A600 inductive contact rating. It has eight 8501XC1 contact cartridges. This relay has eight normally open contacts. The machine tool relays have straight through wiring. This makes wiring easier. The eight plug in contact cartridges in this relay make contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. Relay has a 110/120 VAC 50/60 Hz coil. Relay is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueLine Rated Current |
|
---|---|
Relay Type | control |
Range Of Product | 8501X |
Product Or Component Type | relay |
Warranty | 18 months |
[Uc] Control Circuit Voltage |
|
[Icm] Rated Short-Circuit Making Capacity |
|
Height | 3.5 in |
Control Circuit Voltage Limits | operational 0.85...1.1 Uc AC 50/60 Hz |
Mounting Support | panel |
Hold-In Power Consumption In Va |
|
Electrical Connection | screw clamp terminals |
Contacts Type And Composition | 8 NO 8 standard contact cartridges |
Rated Breaking Capacity |
|
Operating Time |
|
Awg Gauge | AWG 18...AWG 12 copper |
Width | 2.23 in |
Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
Depth | 5.16 in |
Inrush Power In Va |
|
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1310013 |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1310013EN |
Sustainable Offer Status | Green Premium product |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Product Certifications |
|
Ambient Air Temperature For Operation | -40-160 °F |
