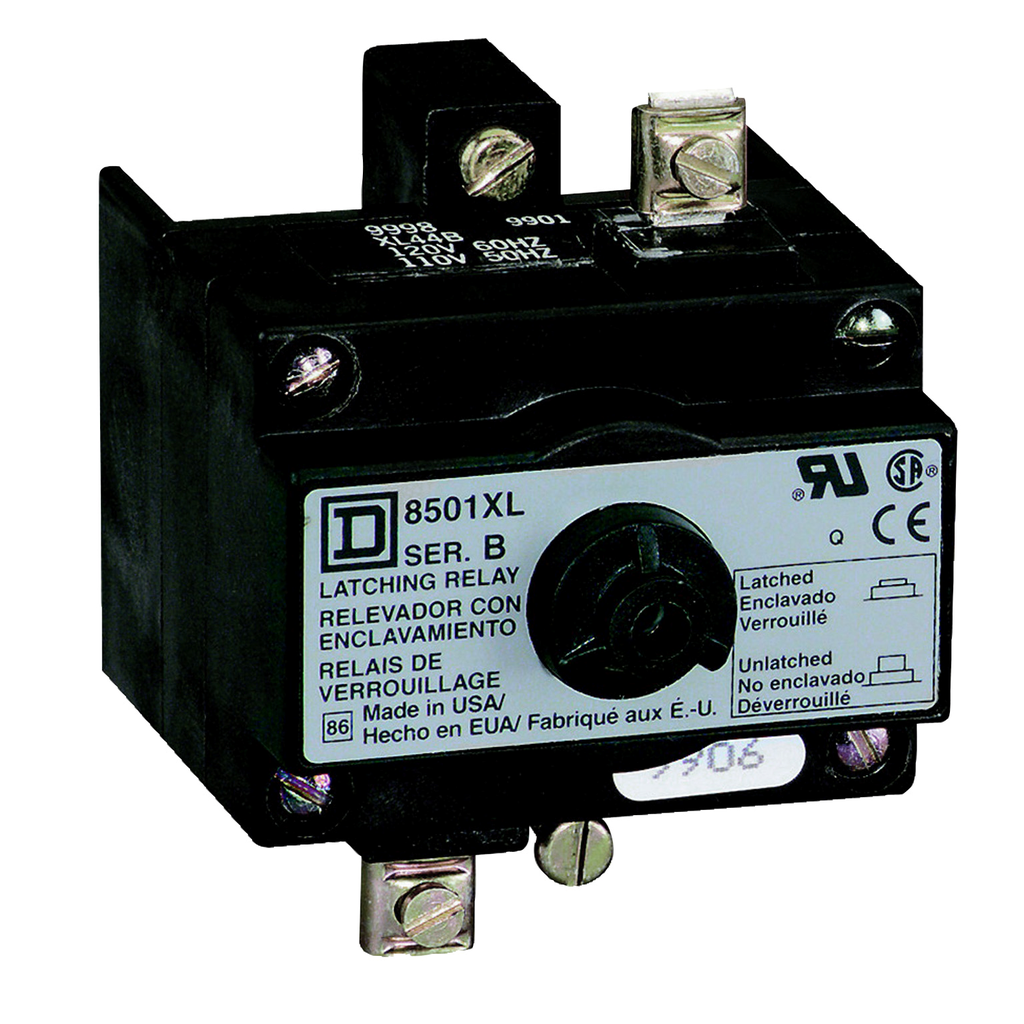

NEMA Control Relay, Type X, mechanical latch attachment, 110/120VAC 50/60Hz coil
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexibility. They are ideal for applications where long life, high reliability and ease of maintenance are important. The 8501X NEMA machine tool relay has a variety of attachments to improve its flexibility. This mechanical latch attachment holds all contacts in the relay switched even after the removal of power from the latching coil. This latch attachment provides sequence memory in the event of power loss. This attachment is often used for press control, process control and punch press applications. Latch attachment has a continuously rated 110/120 VAC 50/60 Hz replaceable unlatching coil, which means no coil clearing contacts are required. This latch attachment is UL listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Relay Type | control relay |
|---|---|
| Range Of Product | 8501X |
| Product Or Component Type | latching device |
| Warranty | 18 months |
| [Uc] Control Circuit Voltage |
|
| Height | 73 mm |
| Control Circuit Voltage Limits | operational 0.85...1.1 Uc AC 50/60 Hz |
| Hold-In Power Consumption In Va |
|
| Electrical Connection | screw clamp terminals |
| Awg Gauge | AWG 18...AWG 12 copper |
| Width | 57 mm |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| Depth | 75 mm |
| Net Weight | 0.3425 kg |
| Inrush Power In Va |
|
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1310013 |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1310013EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications |
|
