Relay, Type R, plug in, miniature, 1HP at 277VAC, 15A resistive at 120VAC, 14 blade, 4PDT, 4NO, 4NC, 24VDC coil

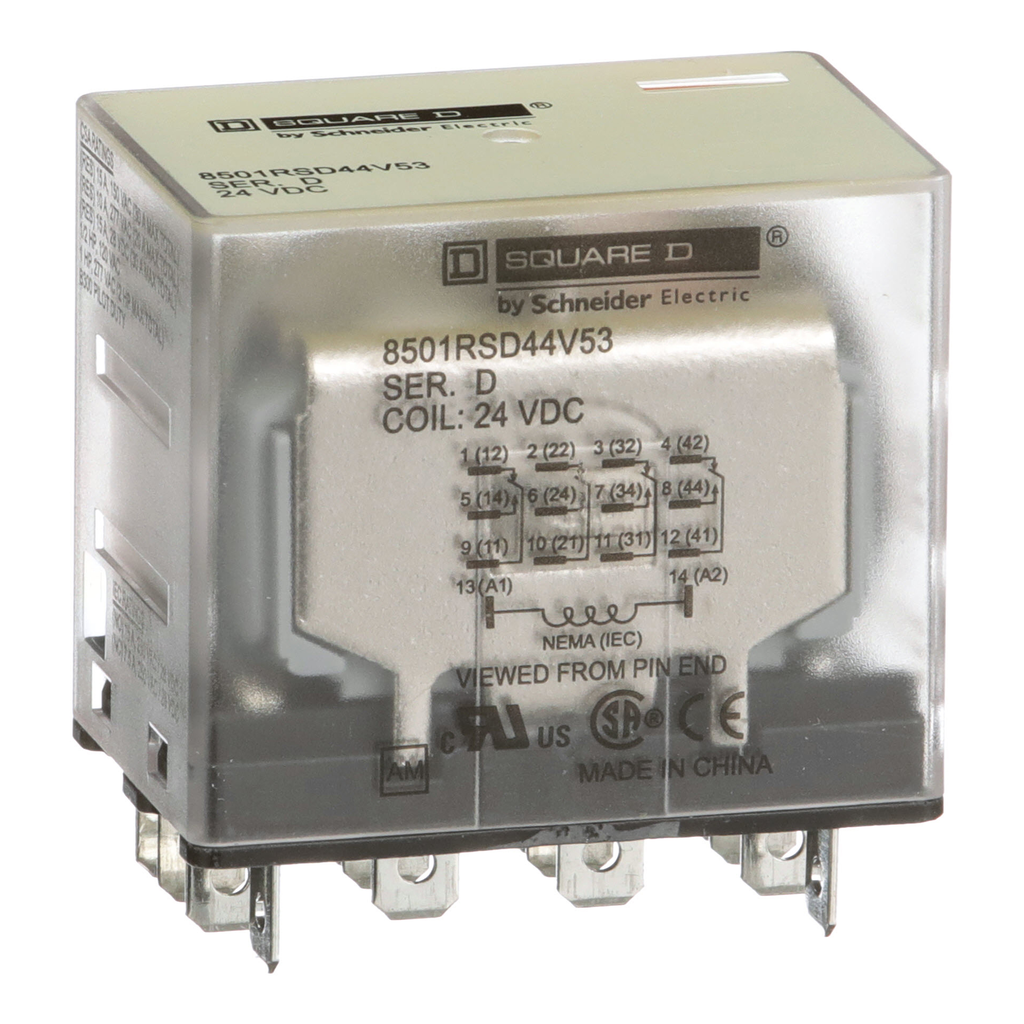

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR34 or 8501NR34B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contact. The contacts have a 15 ampere resistive rating at 277 VAC and at 28VDC, a 10 ampere resistive rating at 277 VAC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Relay Type | standard |
|---|---|
| Range Of Product | 8501R |
| Product Or Component Type | Miniature Relay |
| Warranty | 18 months |
| [Uc] Control Circuit Voltage | 24 V DC |
| Height | 27.3 mm |
| Local Signalling | no indicator |
| Mounting Support | socket |
| Contacts Material | silver alloy, gold flashed |
| Rated Power In Hp |
|
| Shape Of Pin | spade |
| Switch Function | 4PDT |
| Rated Breaking Capacity |
|
| Operating Time |
|
| Width | 40.6 mm |
| Depth | 41.8 mm |
| Product Compatibility | 8501NR34 |
| Maximum Switching Voltage |
|
| Control Type | without test button |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1511008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-131 °F |
