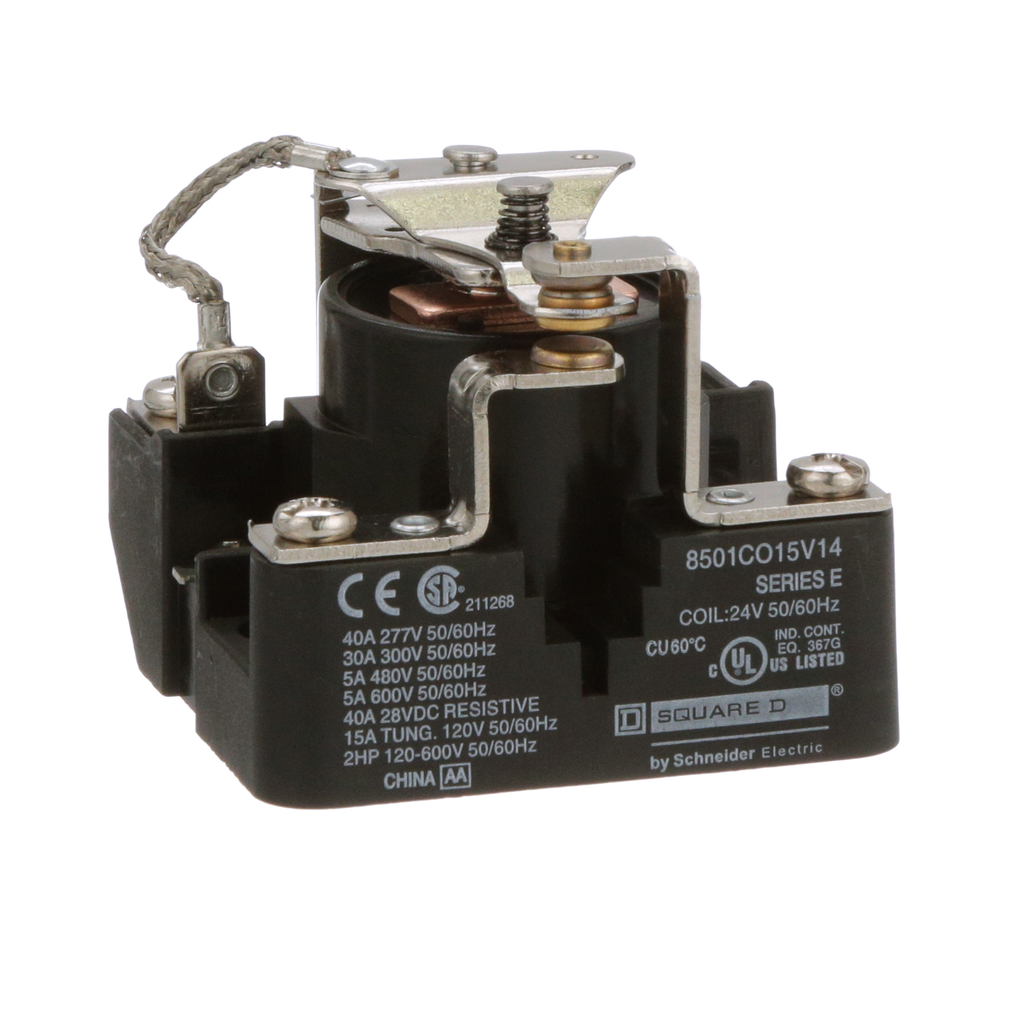

8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration with one normally open and one normally closed contact. A variety of coil voltages are available. This relay has a 24 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Brand: Schneider Electric
Add to Quote CatalogueRated Power In Hp | 2.0 hp |
---|---|
[Uc] Control Circuit Voltage | 24 V AC 50/60 Hz |
Contacts Type And Composition | 1 NO/1 NC |
Range Of Product | Power Relay 8501C |
Line Rated Current | 30 A |
Switch Function | SPDT |
Product Or Component Type | power relay |
Device Application | suited for controlling small single phase motors and other light loads |
Device Short Name | type C |
Maximum Switching Voltage | 600 V AC |
Warranty | 18 months |
Catalog Class | 8501 |
Connections - Terminals | screw clamp terminal |
Mounting Support | panel mounting |
Hold-In Power Consumption In Va | 10-10 VA |
Awg Gauge | AWG 10 copper |
Phase | 1 phase |
Tightening Torque | 11-15 lbf.in |
China Rohs Regulation | X |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1705008EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Product Certifications |
|
Height | 2.43 in |
Ambient Air Temperature For Operation | -22-122 °F |
Width | 2.5 in |
Depth | 2.18 in |
