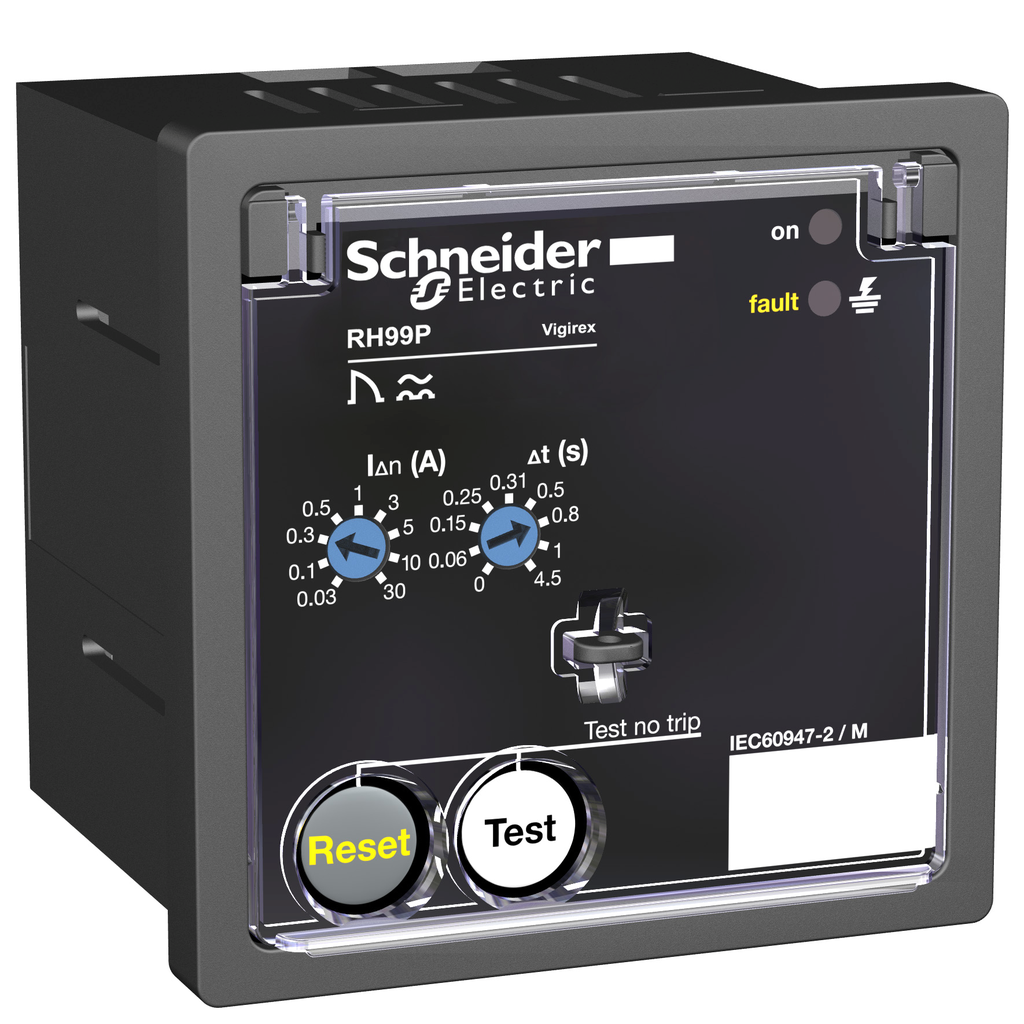

56273 - Residual current protection relay, VigiPacT RH99P, 30mA-30A, 220/240VAC 50/60Hz, front panel mounting

56273

Residual current protection relay, VigiPacT RH99P, 30mA-30A, 220/240VAC 50/60Hz, front panel mounting

VigiPacT RH99P is a front panel mounting residual current protection relay. It protects against people direct or indirect contact, property fire hazards and motors. It measures the earth leakage current in an electrical installation via its associated toroid. It trips the associated circuit breaker when the set residual operation current is overrun. The operational supply voltage is 220/240VAC 50/60Hz. It is a type A earth-leakage protection class. The current sensitivity is selectable with 9 thresholds from 30 mA to 30 A. The time delay is selectable with 9 settings from instantaneous to 4.5s. It requires a local manual reset after a fault clearance. The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz. It is installed on a front panel switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Type Of Setting	selector
Reset	manual reset
Earth Leakage Current	0.03-30 A
Mounting Support	front panel
Range Compatibility	VigiPacT TOA earth leakage current sensor VigiPacT A earth leakage current sensor VigiPacT L earth leakage current sensor
Earth-Leakage Protection Class	type A
Network Rated Voltage	1000-1000 V - AC 50/60 Hz maximum) 1000-1000 V - AC 400 Hz maximum)
[Ithe] Conventional Enclosed Thermal Current	8 A
Earthing System	IT TT TN-S
Relay Application	protection relay
Product Or Component Type	residual current protection relay
Range	VigiPacT
Residual Earth-Leakage Time Delay Adjustment Type	instantaneous for 0.03-0.03 A adjustable 9 settings 0-4.5 s for 0.03-30 A
Residual Earth-Leakage Sensitity Adjustment Type	adjustable 9 settings
Power Consumption In Va	4 VA
[Us] Rated Supply Voltage	220...240 V AC 50/60 Hz 55...110 %
[Uimp] Rated Impulse Withstand Voltage	8 kV
Minimum Load	10 mA 12 V
Device Short Name	RH99P
Warranty	18 months
Ik Degree Of Protection	IK07 EN 50102
Mechanical Robustness	fire resistance IEC 60695-2-1 IK protection 2 joulesIK07 EN 50102 vibrations 13.2...100 Hz0.7 g vibrations 2...13.2 Hz+/- 1 mm
Height	72 mm
Type Of Measurement	earth fault current internal measurement 80...100 %
Net Weight	0.3 kg
Tamperproof Of Settings	protected by sealable cover
Wire Stripping Length	auxiliary power supply 7 mm fault 7 mm relay test and fault reset 7 mm sensor 7 mm voltage presence 7 mm
Connections - Terminals	auxiliary power supply terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 auxiliary power supply terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 auxiliary power supply terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 fault terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 fault terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 fault terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 relay test and fault reset terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 relay test and fault reset terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 relay test and fault reset terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 sensor terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 sensor terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 sensor terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12 voltage presence terminal block 0.2-2.5 mm² flexible AWG 24...AWG 12 voltage presence terminal block 0.2-2.5 mm² rigid AWG 24...AWG 12 voltage presence terminal block 0.25-2.5 mm² flexible AWG 24...AWG 12
Cut-Out Dimensions	68 x 68 mm
Ip Degree Of Protection	on front face IP40 EN/IEC 60529 on side parts IP30 EN/IEC 60529 on connection terminals IP20 EN/IEC 60529
Test Function	local remote test
Monitoring	electronics continuous) power supply continuous) relay/sensor link continuous)
Width	72 mm
Depth	78 mm
Tightening Torque	auxiliary power supply 0.6-0.6 N.m fault 0.6-0.6 N.m relay test and fault reset 0.6-0.6 N.m sensor 0.6-0.6 N.m voltage presence 0.6-0.6 N.m
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP060202EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Circularity Profile	ENVEOLI100416
Eu Rohs Directive	Compliant
Ambient Air Temperature For Operation	-35-70 °C
Electromagnetic Compatibility	conducted and radiated emissionsB CISPR 11 conducted radio-frequency immunity test3 IEC 61000-4-6 electrostatic discharge immunity test4 IEC 61000-4-2 high-energy conducted susceptibility4 IEC 61000-4-5 low-energy conducted susceptibility4 IEC 61000-4-4 radiated susceptibility3 IEC 61000-4-3
Pollution Degree	3 IEC 60664-1
Ambient Air Temperature For Storage	-55-85 °C
Relative Humidity	95-95 % 55-55 °C
Electrical Shock Protection Class	class II
Overvoltage Category	IV
