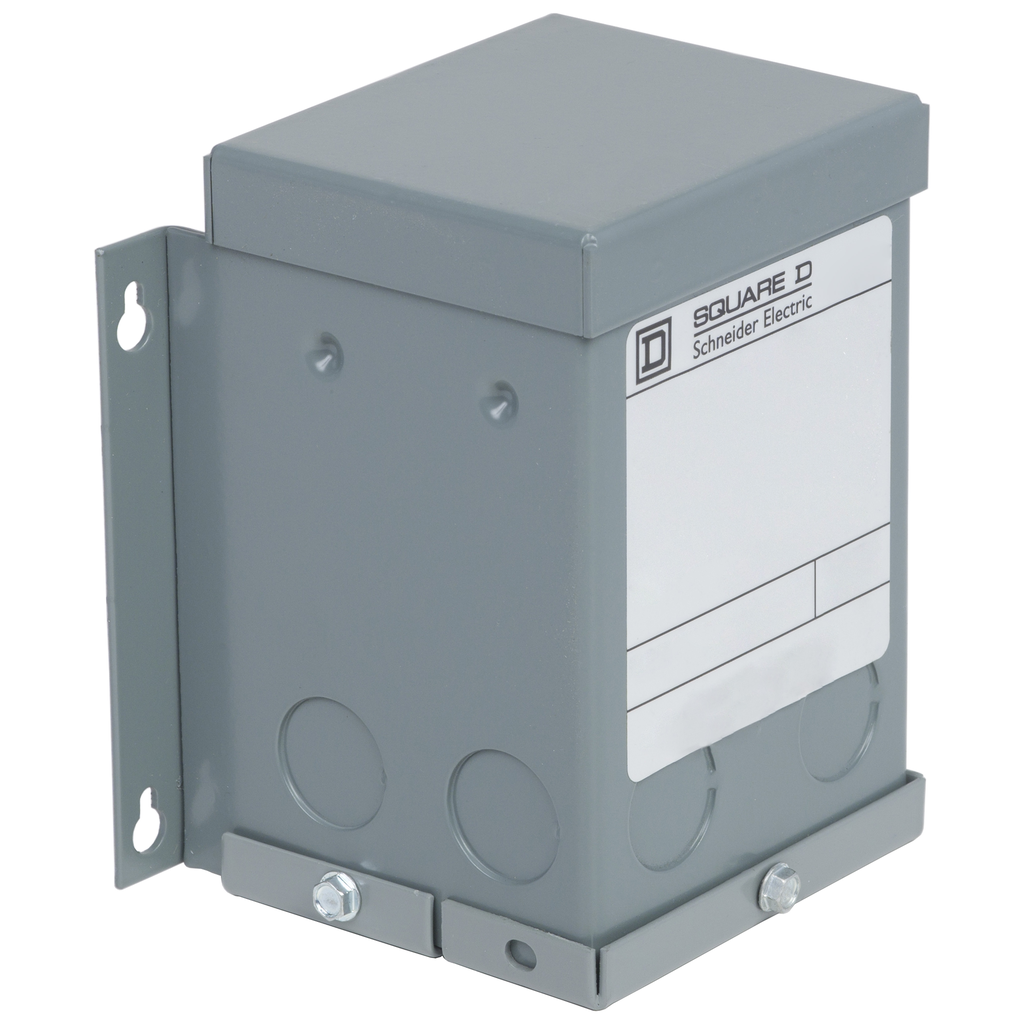

50SV43A
Transformer, buck boost, encapsulated, 0.05kVA, 1 phase, 120x240V primary, 12/24V secondary, NEMA 3R, 55C rise
Specifications
| Primary Voltage | 120 x 240 V |
|---|---|
| Nema Degree Of Protection | NEMA 3R |
| Secondary Voltage | 12/24 V |
| Temperature Rise | 55 °C |
| Product Or Component Type | Buck and Boost Transformer |
| Rated Power In Va | 0.05 kVA |
| Box Number | 1A |
| Insulation Temperature | 105 °C |
| Warranty | 18 months |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407010 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
