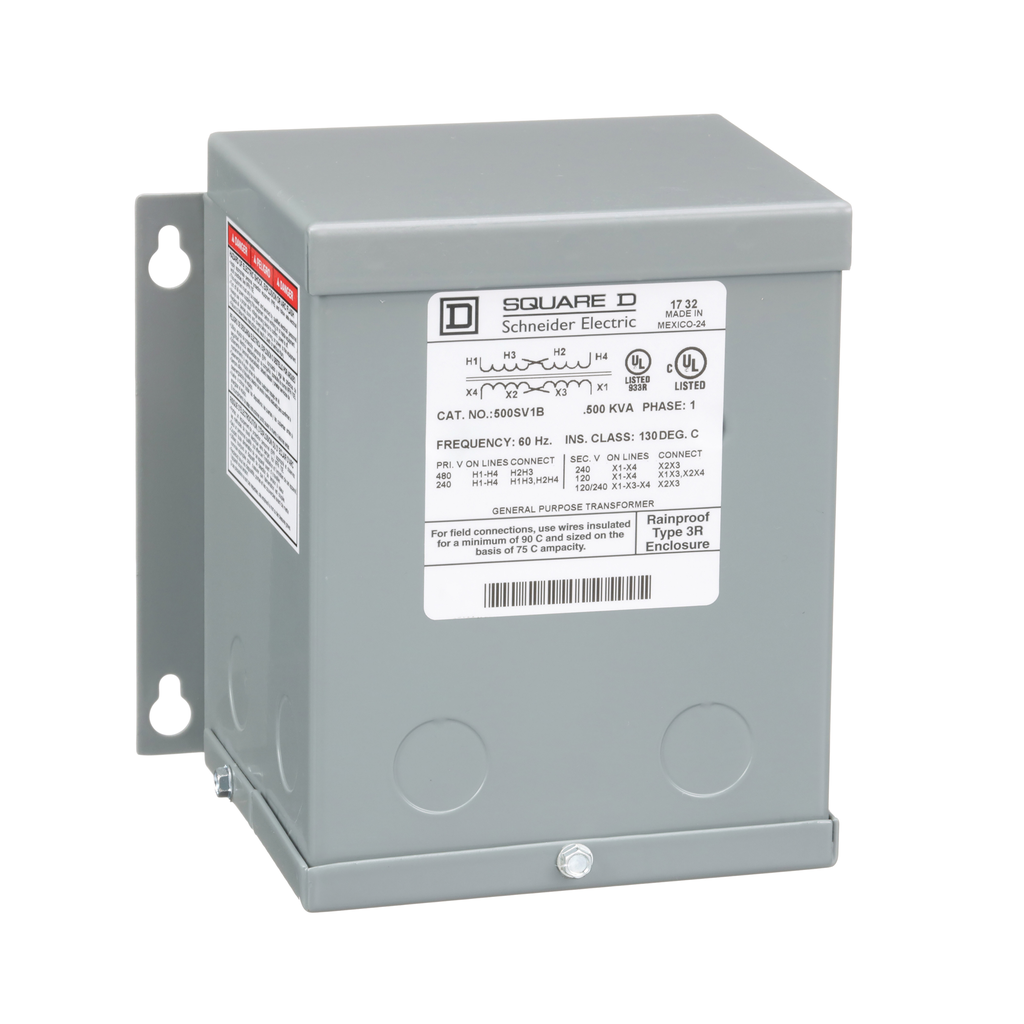

Transformer, dry type, encapsulated, 0.5kVA, 1 phase, 240x480V primary, 120/240V secondary, 5A, 55C rise
Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.5 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5.5 in (H), 6.19 in (W), 4.69 in (D). This product complys to UL & CSA standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Number Of Tap-Offs | 0 |
|---|---|
| Product Or Component Type | Dry Sealed Transformer |
| Primary Voltage | 240 x 480 V 120/240 V |
| Warranty | 18 months |
| Height | 5.5 in |
| Temperature Rise | 80 °C |
| Phase | 1 phase |
| Rated Power In Va | 0.5 kVA |
| Enclosure Mounting | wall mounted |
| Enclosure Material | painted sheet steel |
| Width | 6.19 in |
| Depth | 4.69 in |
| Box Number | 5A |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407010 |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 3R |
| Insulation Temperature | 130 °C |
