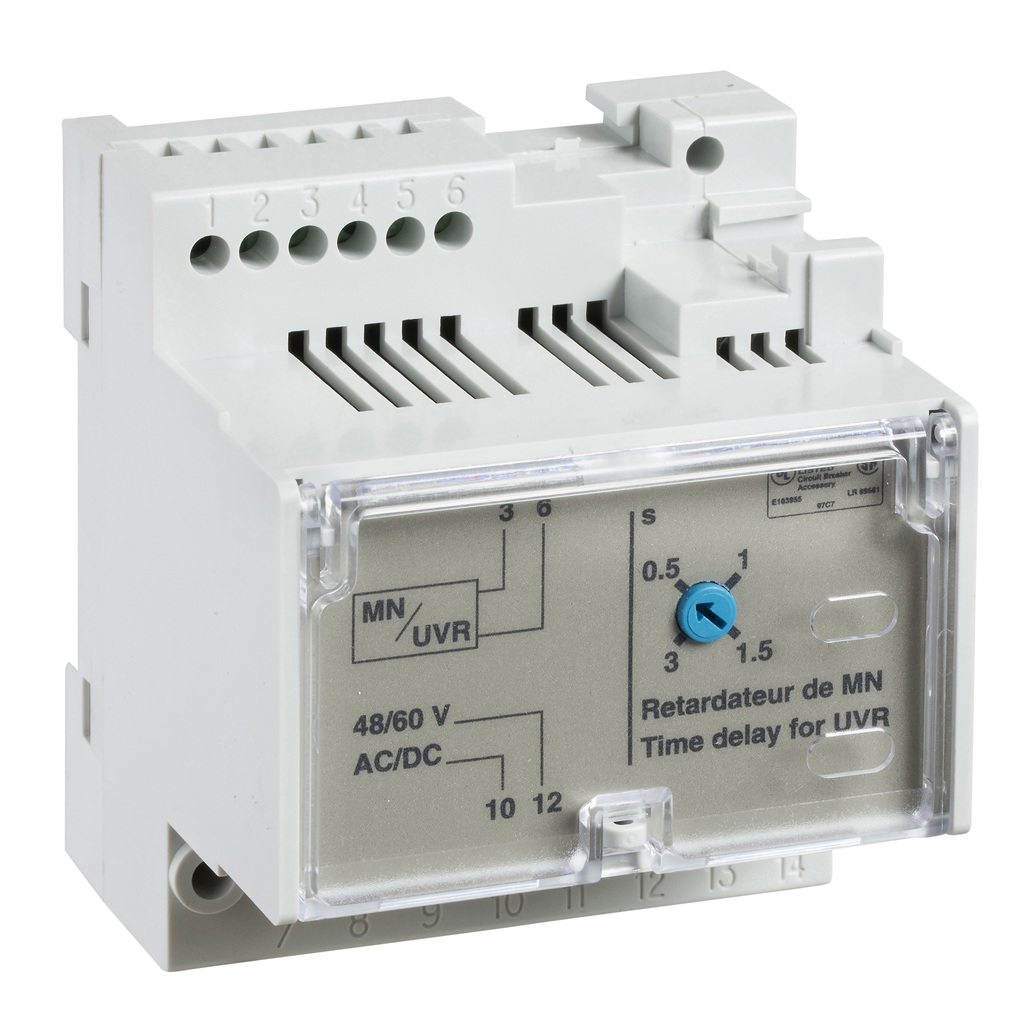

This time delay unit is an auxiliary that can be combined with an undervoltage release (MN). It must be associated with a 48VDC MN undervoltage release. It eliminates the risk of nuisance tripping due to transient voltage dips lasting from 200ms to 3s. Its power supply is 48-60VDC or 48-60VAC 50/60Hz. This time delay unit has 4 adjustable steps (0.5s - 1s - 1.5s - 3s). It is an external accessory and can be mounted in the switchboard.
Brand: Schneider Electric
Add to Quote Catalogue[Uc] Control Circuit Voltage |
|
---|---|
Range Compatibility |
|
Product Or Component Type | time delay relay |
Voltage Release Type | undervoltage release |
Device Application | control |
Device Short Name | MN delay unit |
Warranty | 18 months |
Supply Holding Power | 4.5 VA |
Supply Inrush Power | 200 VA |
Accessory / Separate Part Category |
|
Impulse Duration | 200 ms |
Time Delay Range | 0.5...3 s |
Mounting Mode | external mounting |
Response Time |
|
Threshold Tripping Voltage |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
