32556

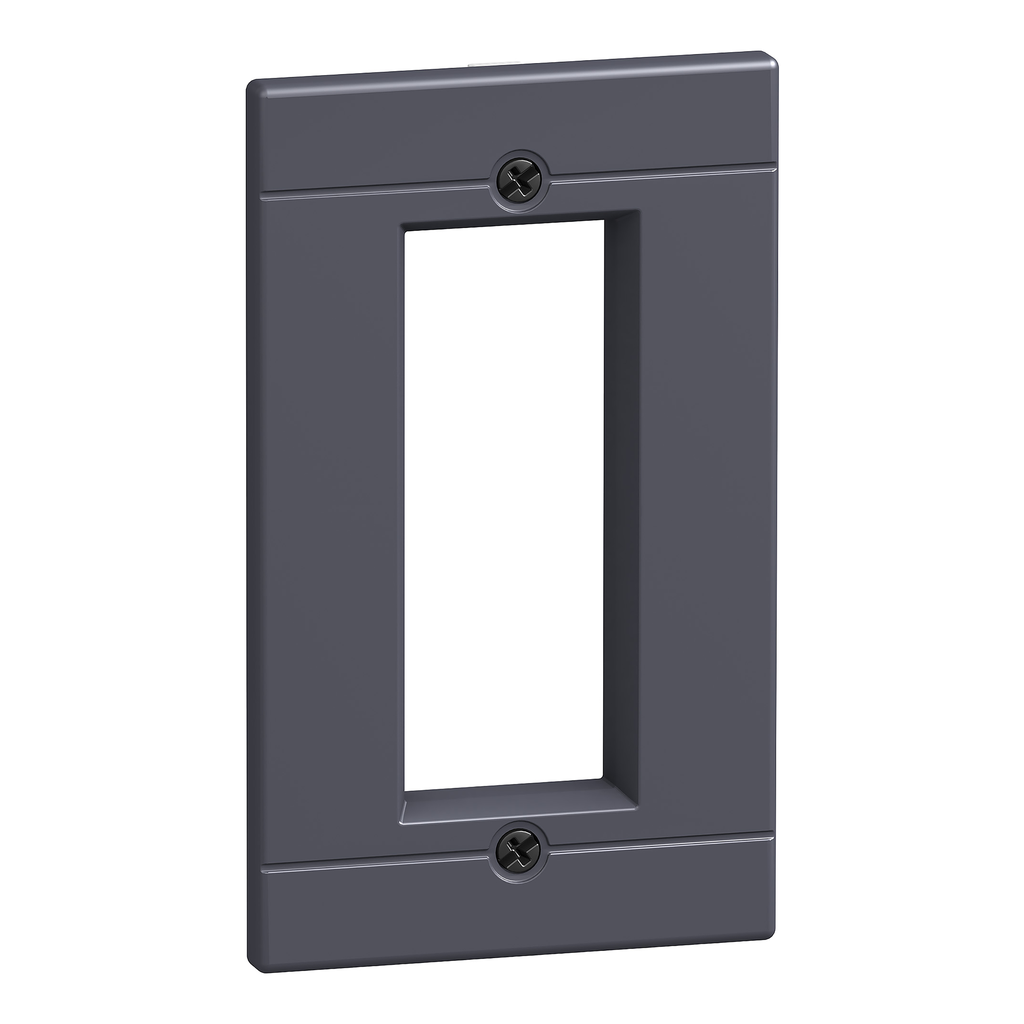

Toggle escutcheon, ComPacT NS, small cut out, spare part, IP40
This is a spare part for toggle escutcheon mounted on Compact NSX 400/630, EasyPact CVS 400/630 and PowerPact Multistandard L frame. It is a small cut-out part (Compact NS type). It is mounted on the switchboard door. It increases the degree of protection to IP40, IK07.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Accessory / Separate Part Category | installation accessory |
| Product Or Component Type | escutcheon |
| Warranty | 18 months |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP050905EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ip Degree Of Protection | IP40 |
