NEMA Motor Starter, Type S, replacement coil, 440/480VAC 50/60Hz, NEMA Size 4 starters and 8903SV lighting contactors

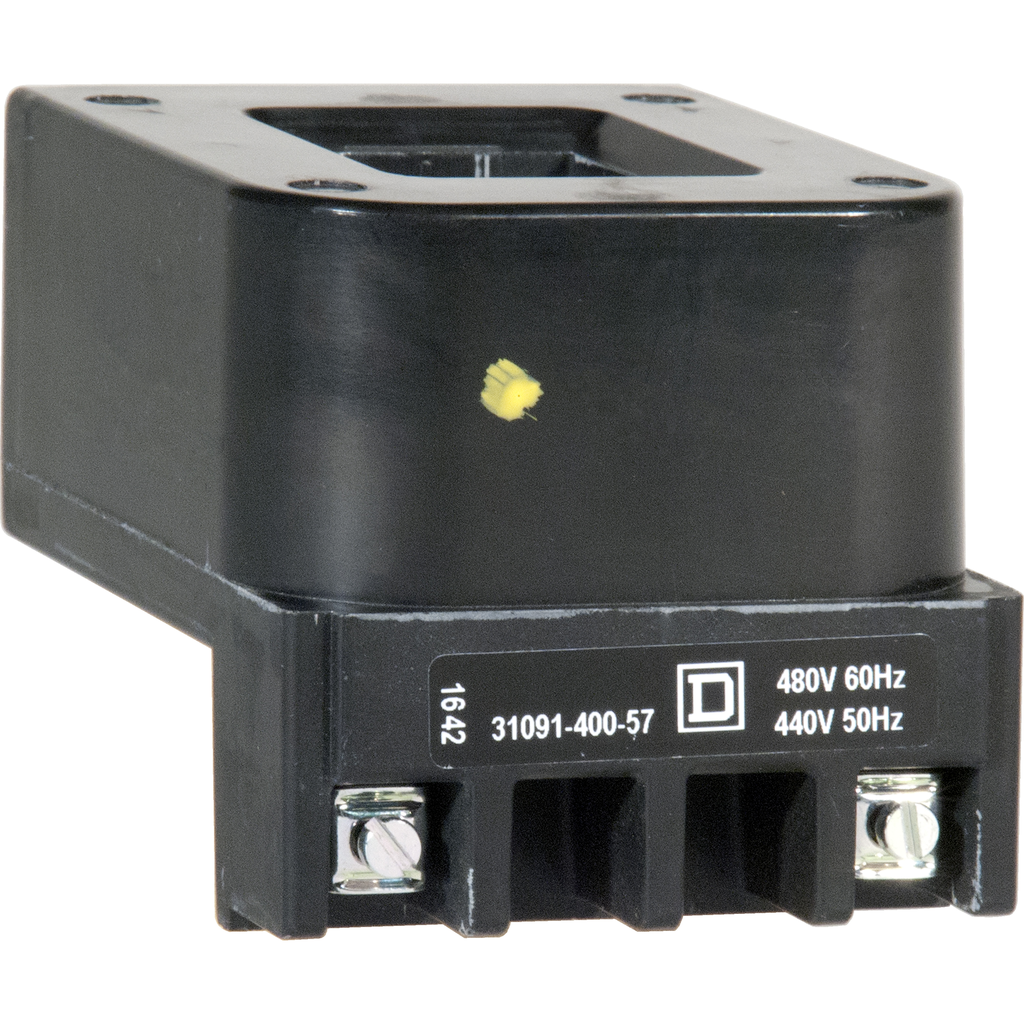

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SF contactor, an 8536SF starter or an 8903SV lighting contactor. This coil is rated for 440/480 VAC 50/60 Hz. The inrush power of this coil is 1185 VA. It has an average sealed consumption of 85 VA. This coil has a height of 74.7 mm, a width of 65 mm and a depth of 62.7 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Destination |
|
|---|---|
| Product Or Component Type | coil |
| Warranty | 18 months |
| Average Consumption |
|
| [Ue] Rated Operational Voltage |
|
| Height | 73 mm |
| Nema Size | 4 |
| Inrush Power In Va |
|
| Width | 65 mm |
| Depth | 62.7 mm |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
