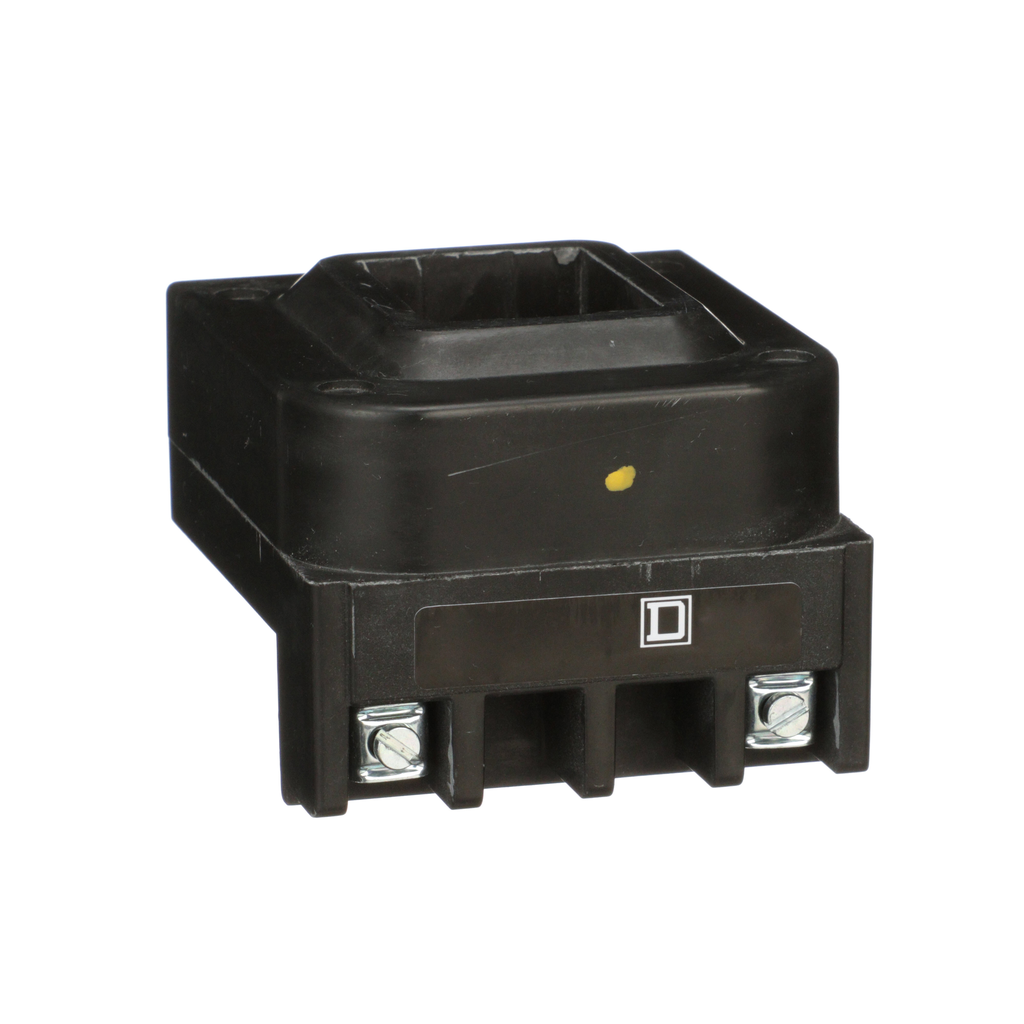

The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SE contactor, an 8536SE starter, an 8903SQ lighting contactor or an 8910DPA12 definite purpose contactor. This coil is rated for 208 VAC 60 Hz. The inrush power of this coil is 700 VA. It has an average sealed consumption of 46 VA. This coil has a height of 73 mm, a width of 65 mm and a depth of 53.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
Brand: Schneider Electric
Add to Quote CatalogueAccessory / Separate Part Destination |
|
---|---|
Product Or Component Type | coil |
Warranty | 18 months |
Average Consumption | 46 VA |
[Ue] Rated Operational Voltage | 208 V AC 60 Hz |
Height | 73 mm |
Nema Size | 3 |
Inrush Power In Va | 700 VA |
Width | 65 mm |
Depth | 2.093 mm |
Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
