29370

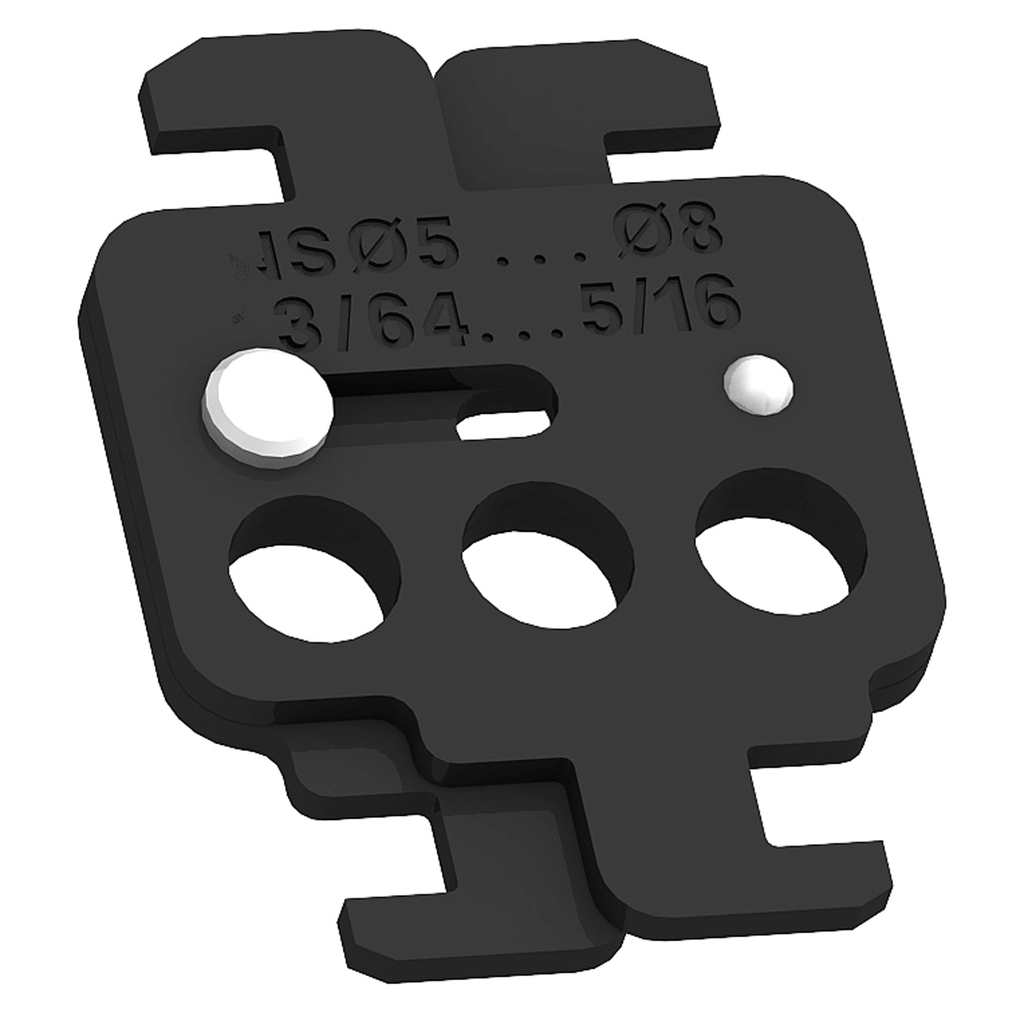

Removable toggle padlocking device, ComPacT NSX, PowerPacT B, EasyPact CVS, OFF position only
It is a removable toggle padlocking device for circuit breakers. This locking accessory is compatible with Compact NSXm, Compact NSX, PowerPact B and EasyPact CVS products. It can receive up to three padlocks with diameter of 5 to 8 mm and is used to lock Compact NSXm in OFF position only. Locking in the OFF position ensures isolation as per IEC 60947-2.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Compatibility |
|
|---|---|
| Product Or Component Type | padlocking device |
| Device Short Name | locking for 1 to 3 padlocks |
| Warranty | 18 months |
| Number Of Locks | 3 |
| Locking Options Description |
|
| Mounting Mode | removable |
| Keylock Destination | toggle |
| Key Locking Position | in front |
| Accessory / Separate Part Type | keylock accessories |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Documents
- Spec Sheet
- EasyPact EZC Catalog - LVED212091EN-EZC-catalog-2020 (pdf)
- Digest Catalog 18: Contactors and Starters-IEC - 0100CT1901_SEC-18 (pdf)
- ComPacT NSX & NSXm Circuit Breakers and Switch Disconnectors from 16 to 630A up to 690V - 2022 - LVPED221001EN (pdf)
- Tesys BV4 Motor Circuit Protectors Catalog - 0680CT1701R06_20 (pdf)
- COMPACT NSX COMPACT INS INV and MASTERPACT NW DC DC PV catalog - LVPED208006EN (pdf)
- Catalog Powerpact B Multistandard - LVPED216029EN (pdf)
- Catalogue Compact NSX & NSXm circuit breakers and switch disconnectors from 16 to 630A up to 690V - LVPED217032EN (pdf)
- PowerPacT B-Frame 15 to 125 A Circuit Breakers - Catalog - 0611CT1603 (pdf)
- PowerPact B-frame Molded Case Circuit Breakers Brochure - 0611BR1601 (pdf)
- PowerPacT: The New Generation of Molded Case Circuit Breakers (MCCB) - brochure - 998-21101950_NAM_PowerPacT (pdf)
- EcoStruxure Power Asset Performance eGuide - 998-20406243_US_NEMA (pdf)
- Removable Padlock Attachment S29370 - Installation Instructions - 48940-232-01 (pdf)
