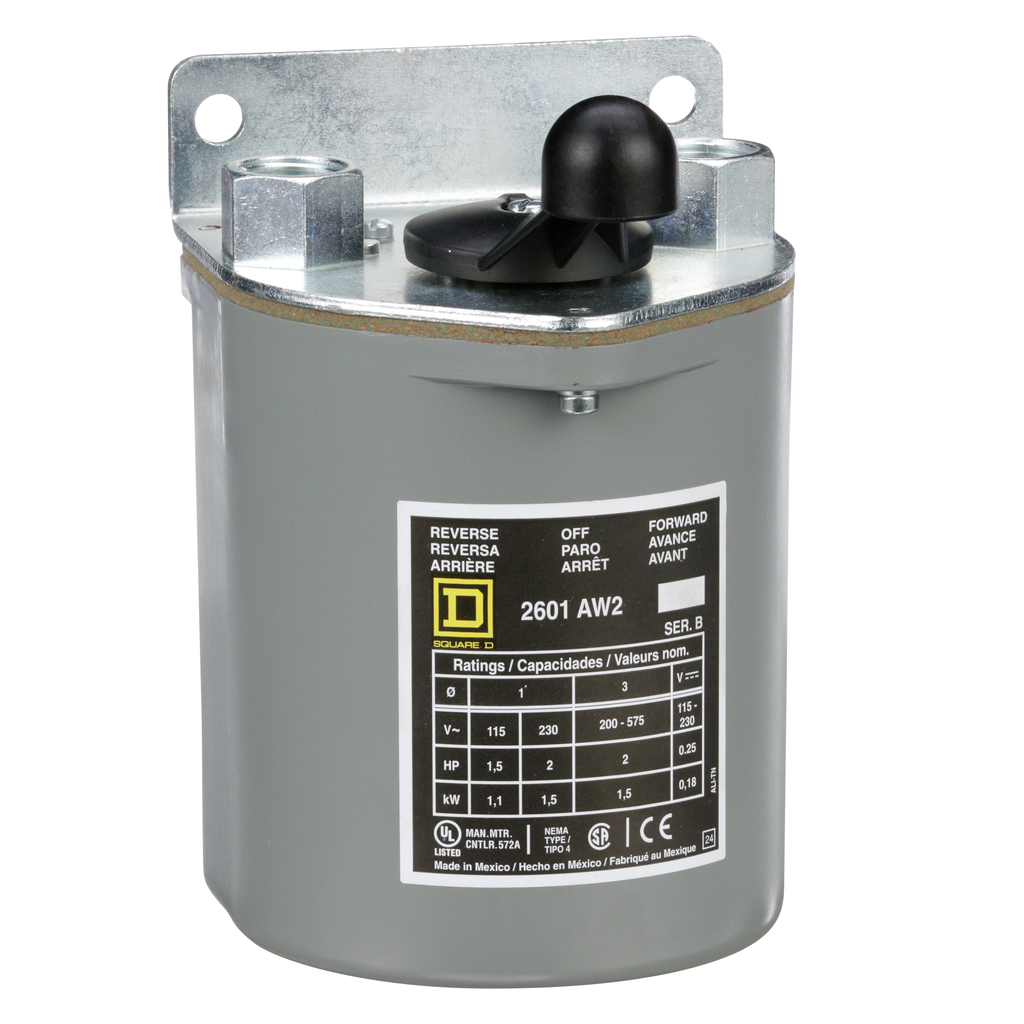

2601AW2
Switch, reversing drum, 2 HP at 230 VAC single phase, 2 HP at 575 VAC polyphase, handle operated, NEMA 4 enclosure
2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Nema Degree Of Protection | NEMA 4 |
|---|---|
| Maximum Horse Power Rating |
|
| Poles Description | 3P |
| Product Or Component Type | Reversing Drum Switch |
| [Ue] Rated Operational Voltage |
|
| Warranty | 18 months |
| Product Certifications |
|
| Range Of Product | A |
| Electrical Connection | screw-clamp terminals |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
