Switch, manual, 30A, 2 pole, 3 HP at 575 VAC, single phase, toggle operated, red 115 VAC indicator, NEMA 4, two conduit

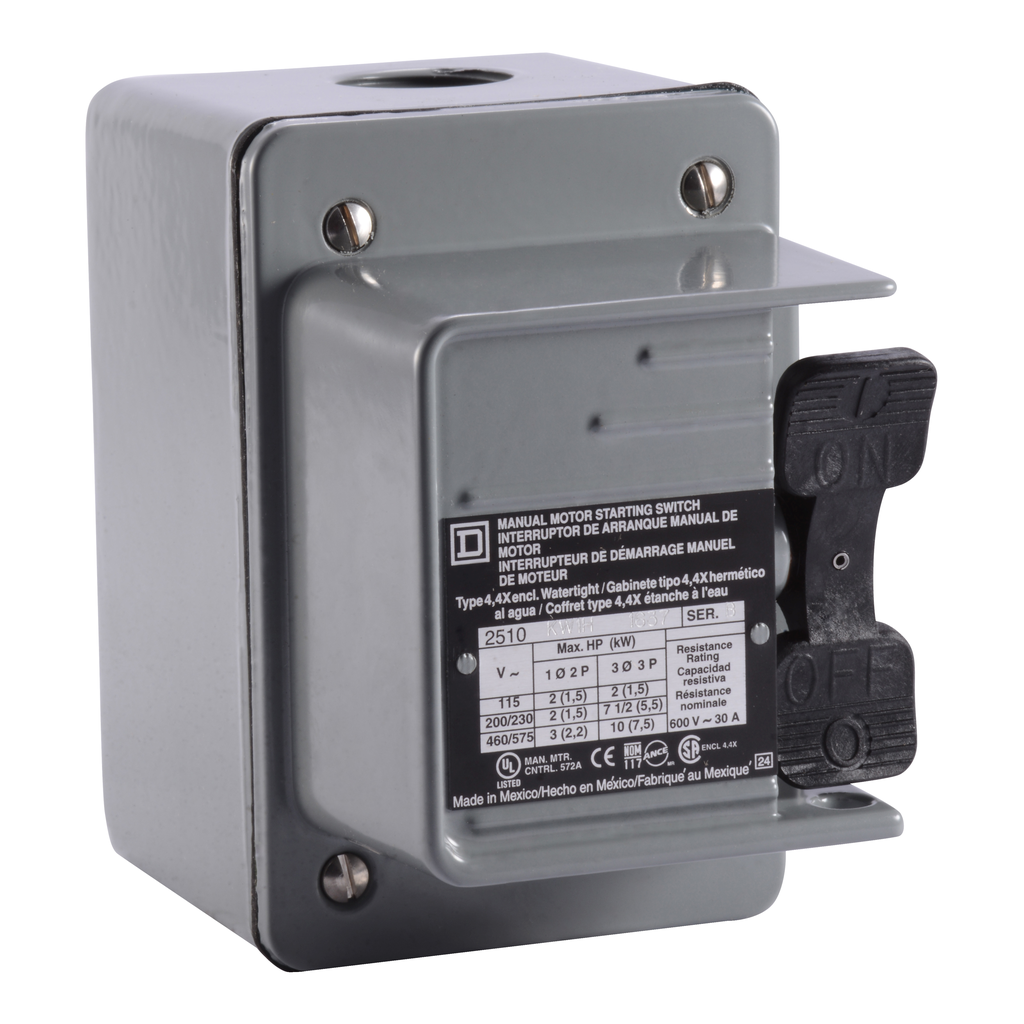

2510K manual motor switches are designed for manual On Off control for small motors. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, and 3 HP at 600VAC single phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 4 watertight enclosure. A 3/4 inch conduit opening is on the top and bottom of the enclosure. Enclosure as a provision to allow padlocking of this device. 2510K manual switches are UL listed and CSA certified. This switch has no pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.25 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | K |
|---|---|
| Product Or Component Type | Single Unit Manual Switch |
| Warranty | 18 months |
| Height | 4.38 in |
| Phase | 1 phase |
| Control Type | toggle |
| Motor Starter Type | non reversing |
| Local Signalling | no indicator |
| Poles Description | 2P |
| Electrical Connection | screw clamp terminals |
| Cable Entry | 0.75 NPT (top and bottom) |
| Line Rated Current | 30 A |
| Awg Gauge | AWG 14...AWG 10 copper |
| Width | 3 in |
| Depth | 4.25 in |
| Maximum Horse Power Rating |
|
| [Ue] Rated Operational Voltage |
|
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Not compliant |
| Product Certifications |
|
| Nema Degree Of Protection | NEMA 4 die cast zinc alloy standard size |
